Dell Chromebook 3100 2-in-1 Service Manual

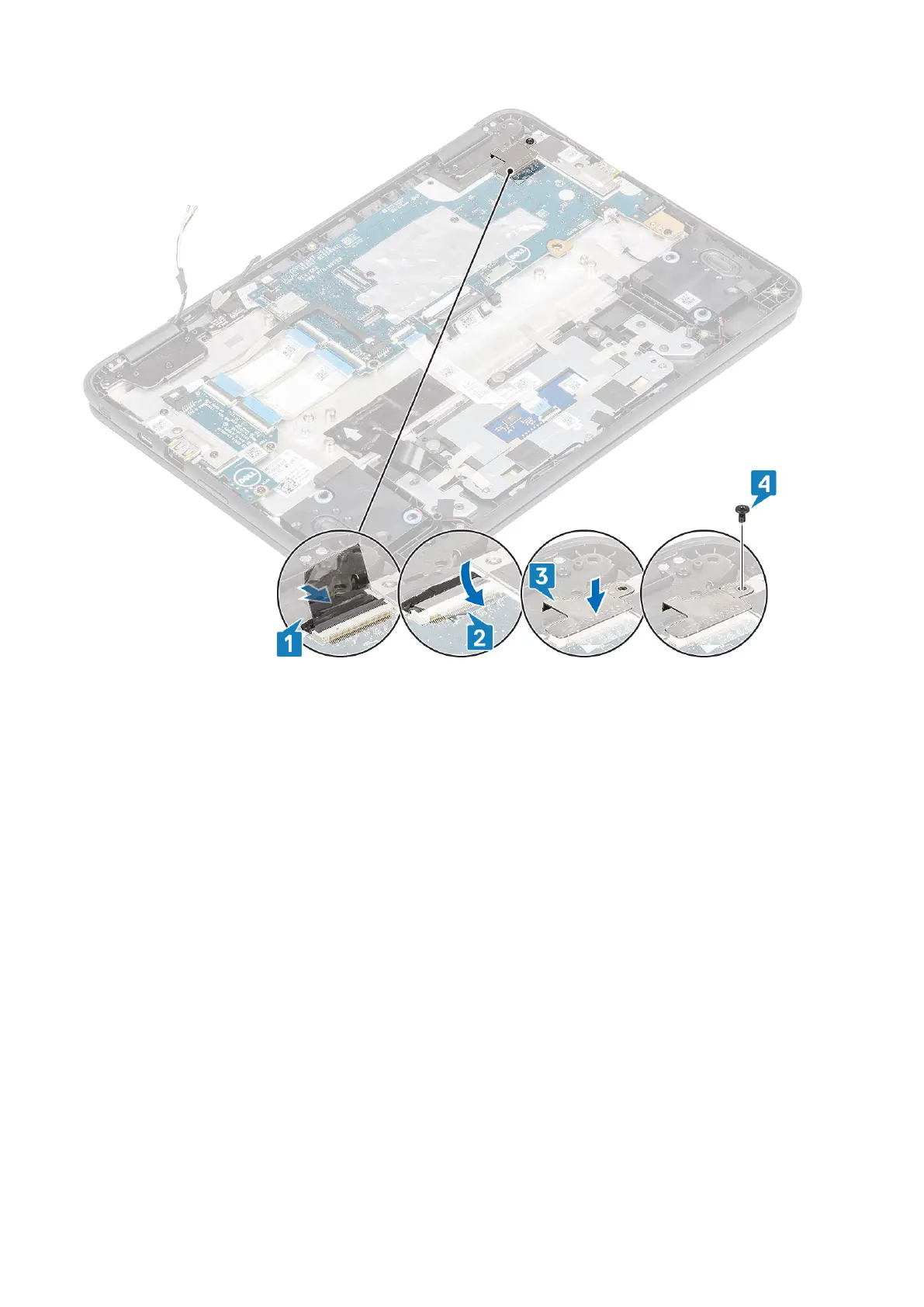

9. Connect the EMR cable to the connector on the system board [1].
10. Connect the wireless antennas to the wireless module [2].
11. Place the wireless bracket to secure the wireless antennas and replace the single (M2.0x3.0) screw that secures the wireless bracket
to the system [3, 4].
Removing and Installing
55

Dell Chromebook 3100 2-in-1 Specifications

General

RAM	4GB LPDDR4
Storage	32GB eMMC
Display	11.6-inch HD (1366 x 768) Touchscreen
Graphics	Intel UHD Graphics 600
Operating System	Chrome OS
Battery Life	Up to 10 hours
Camera	720p HD Webcam
Color	Black
Processor	Intel Celeron N4020
Ports	2 x USB-C, 1 x MicroSD card reader, 1 x Headphone/Mic combo jack
Wireless	Bluetooth 5.0
