Dell Chromebook 3100 2-in-1 Service Manual

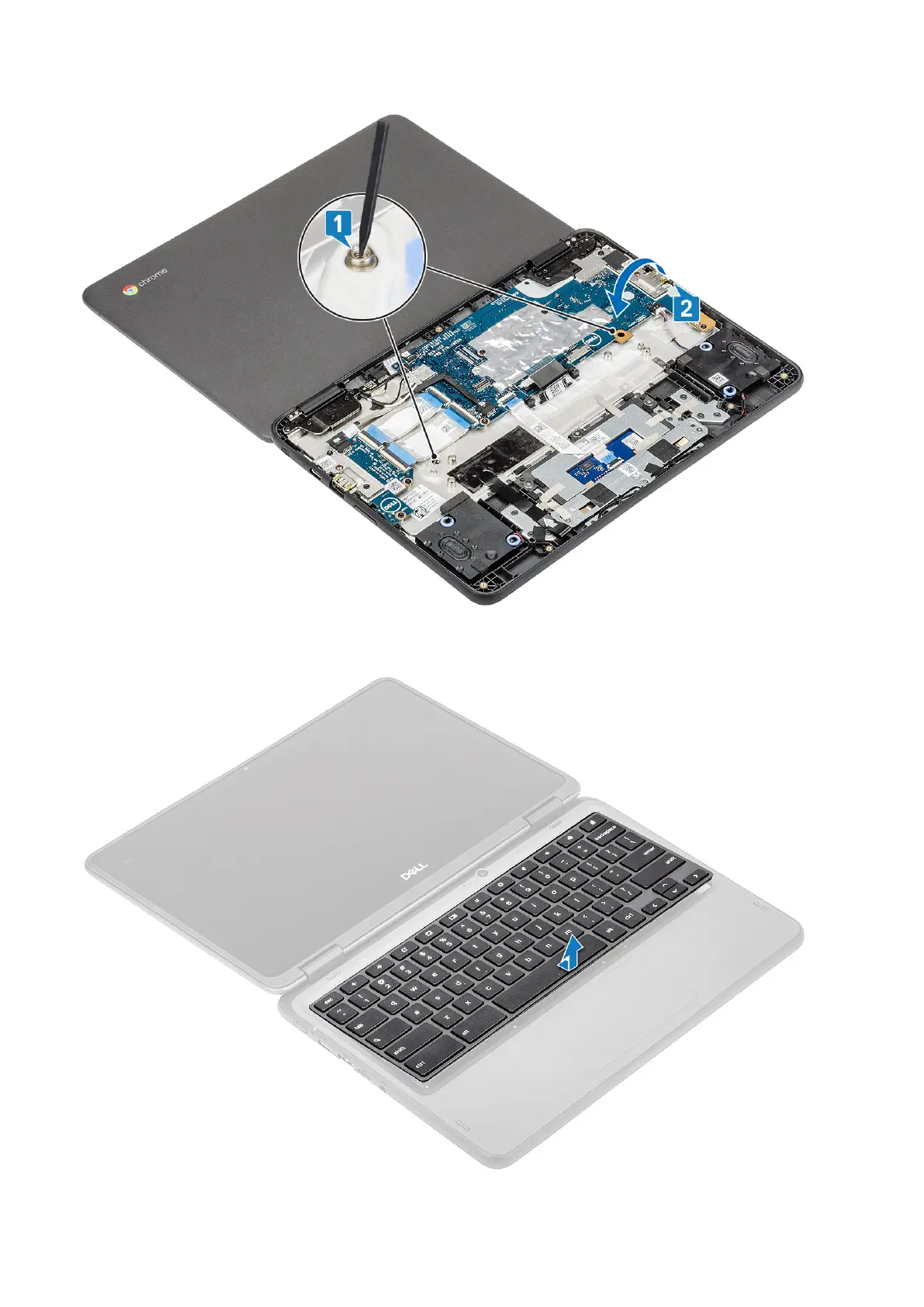

4. Turn the system over and carefully lift the keyboard and then pull the keyboard cable through the gap in the palm rest.
5. Lift and pull the keyboard out from the computer.
36
Removing and Installing

Dell Chromebook 3100 2-in-1 Specifications

General

RAM	4GB LPDDR4
Storage	32GB eMMC
Display	11.6-inch HD (1366 x 768) Touchscreen
Graphics	Intel UHD Graphics 600
Operating System	Chrome OS
Battery Life	Up to 10 hours
Camera	720p HD Webcam
Color	Black
Processor	Intel Celeron N4020
Ports	2 x USB-C, 1 x MicroSD card reader, 1 x Headphone/Mic combo jack
Wireless	Bluetooth 5.0
