Dell Edge Gateway 3003 - Mounting the Edge Gateway using the Standard-Mount Bracket

NOTE: The mounting brackets are shipped with only those screws that are required for securing the mounting brackets to
the Edge Gateway.

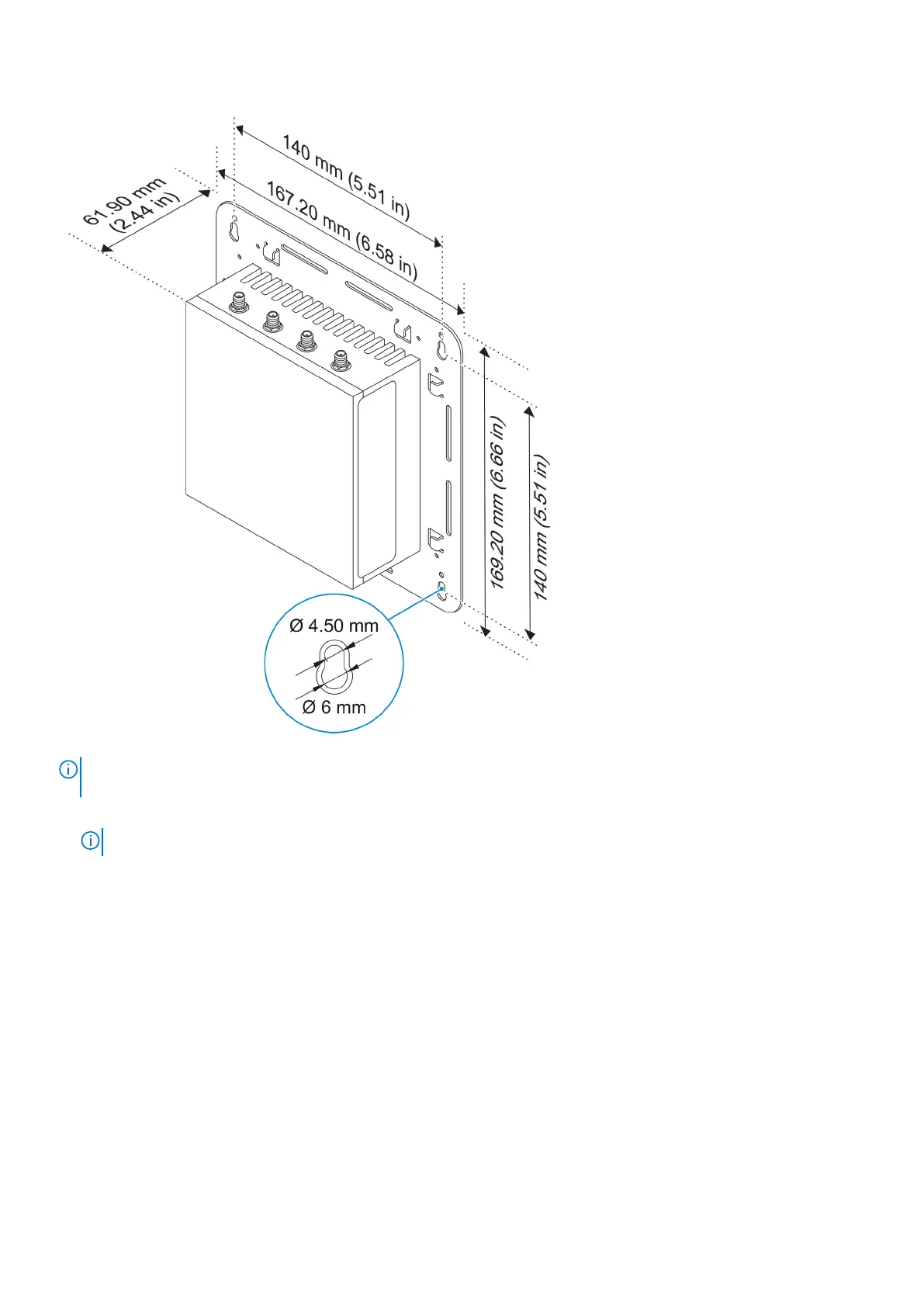

1. Secure the standard-mount bracket to the back of the Edge Gateway using the four M4x4.5 screws.
NOTE: Torque the screws at 8±0.5 kilograms-centimeter (17.64±1.1 pounds-inch).
22 Installing your Edge Gateway
