3 Lift the heat sink o the CPU board.

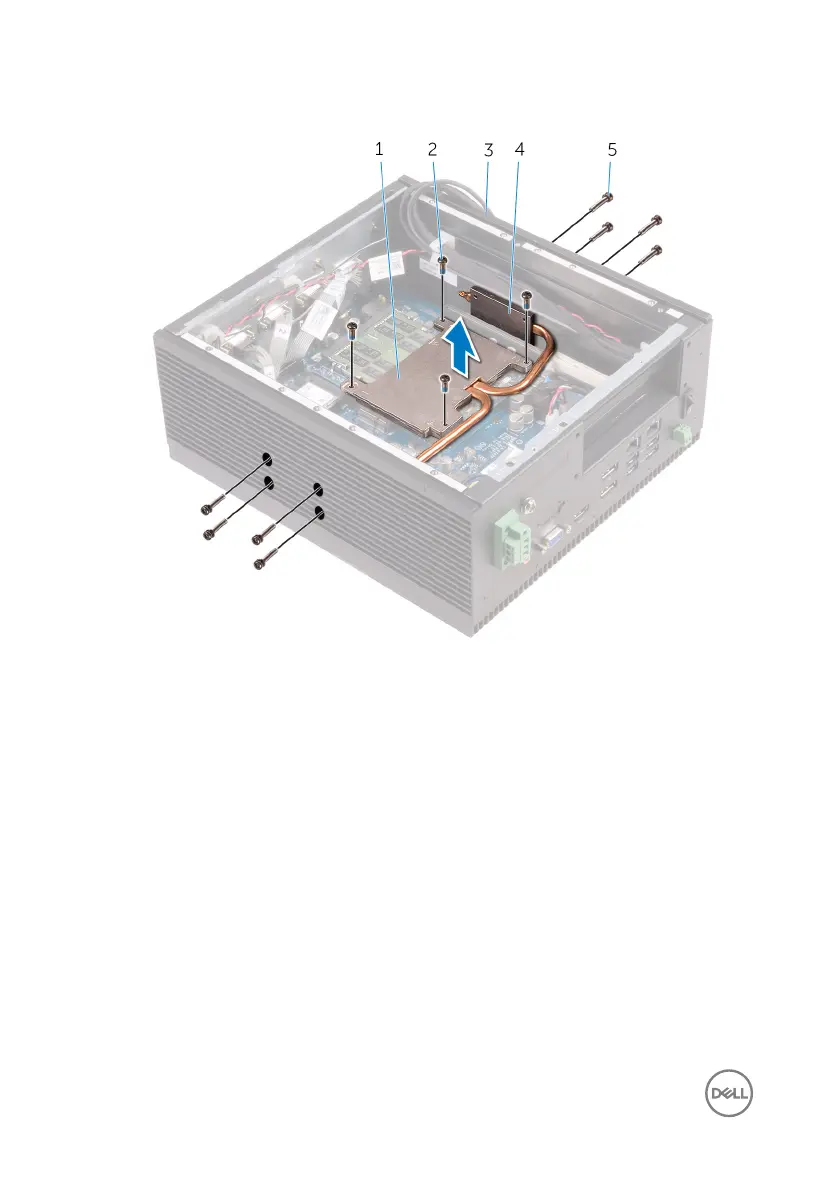

1 heat sink 2 M3x8 heat sink screws (4)
3 chassis 4 chassis heat-sink (2)
5 M3x16 chassis heat-sink
screws (8)
