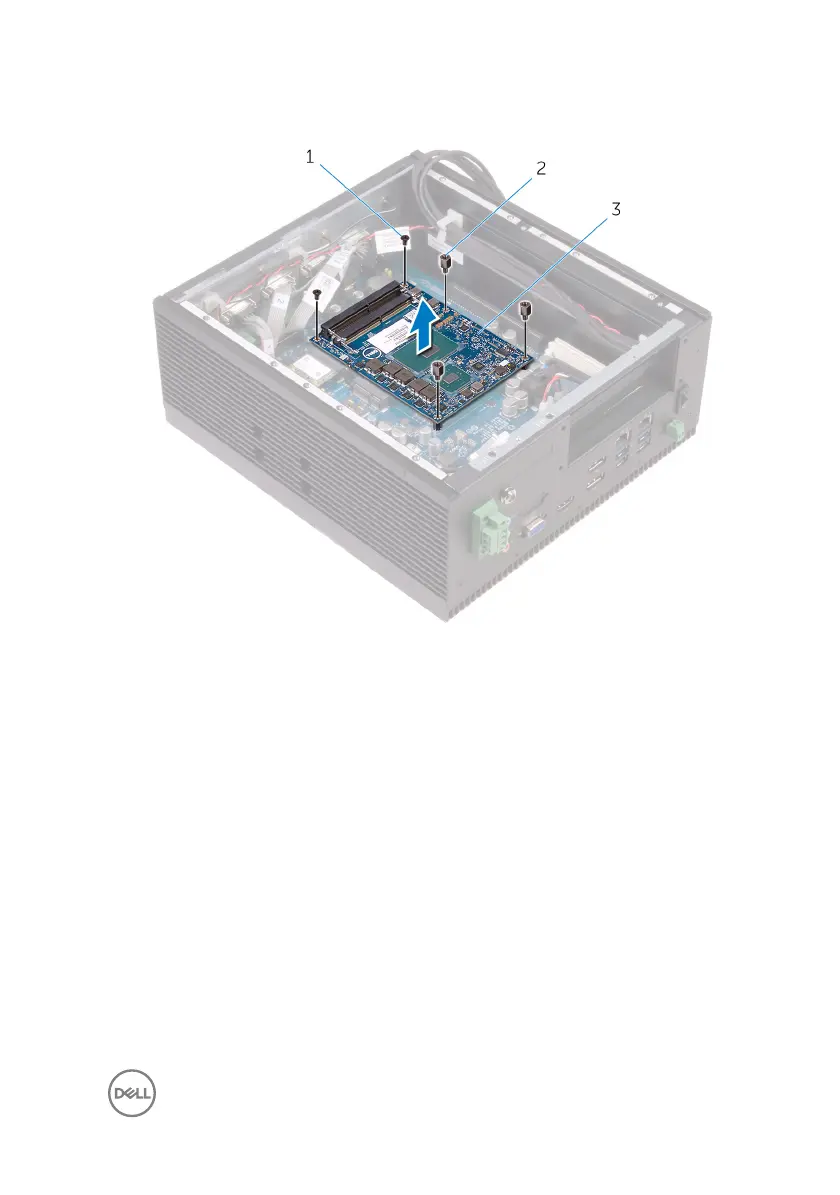

2 Lift the CPU board o the system board.
1 M2.5x6 screws (2) 2 STDF(L5) HEX, M2.5x4
screws (3)
3 CPU board
117
