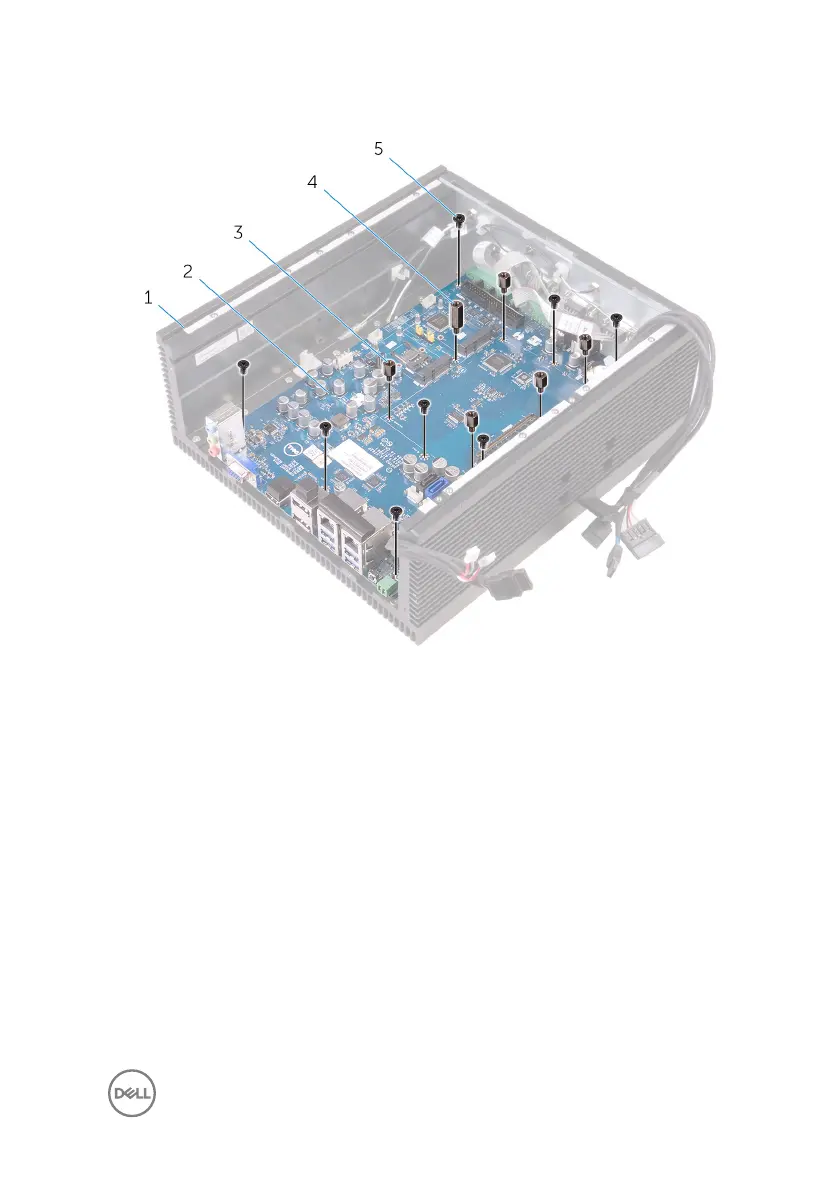

2 Remove the screws that secure the system board to the chassis.
1 chassis 2 system board
3 STDF(L8) HEX, M3x4 screws
(5)
4 STDF(L15) HEX, M3x4
screws (1)
5 M3x5 screws (8)
