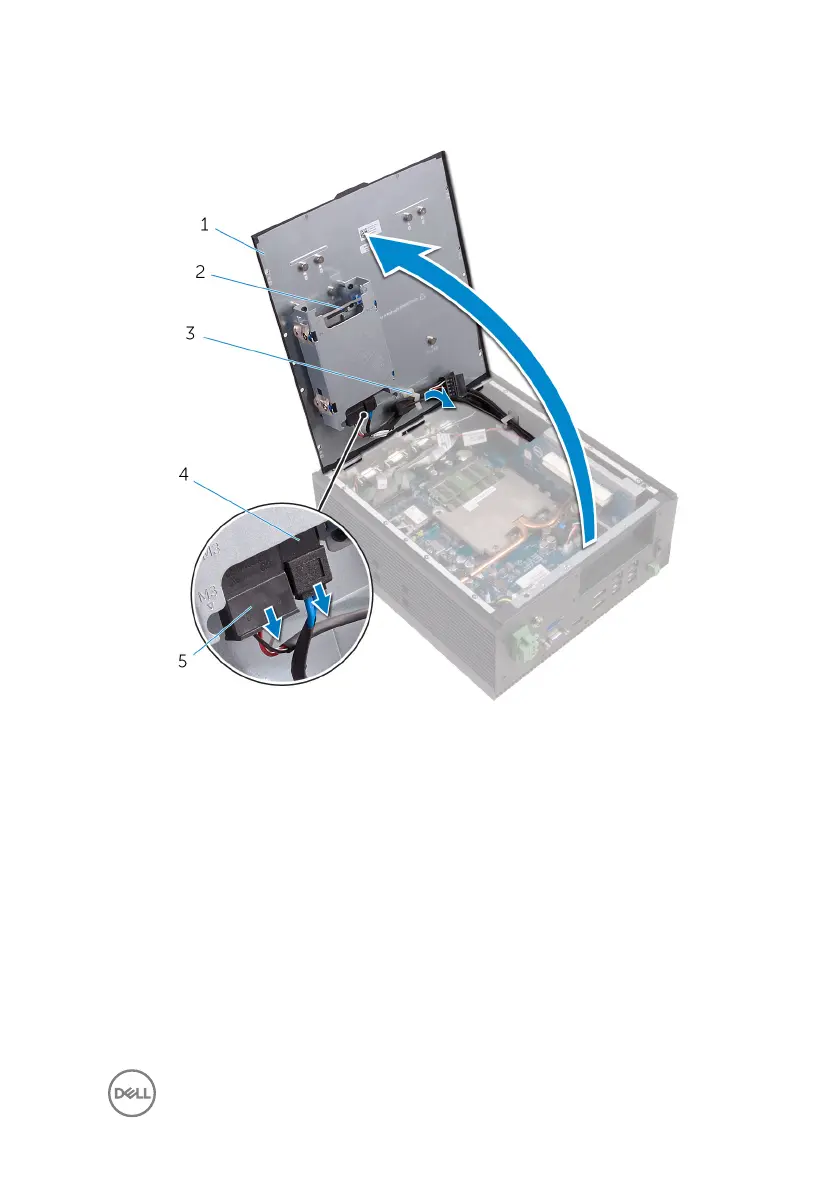

4 Remove the cables from the routing guides on the top cover.
1 back cover 2 hard drive/Solid-state drive
assembly
3 routing guide 4 SATA-data cable
5 SATA-power cable
5 Close the back cover partially and push the back cover forward to release it from
the tabs on the chassis.
21
