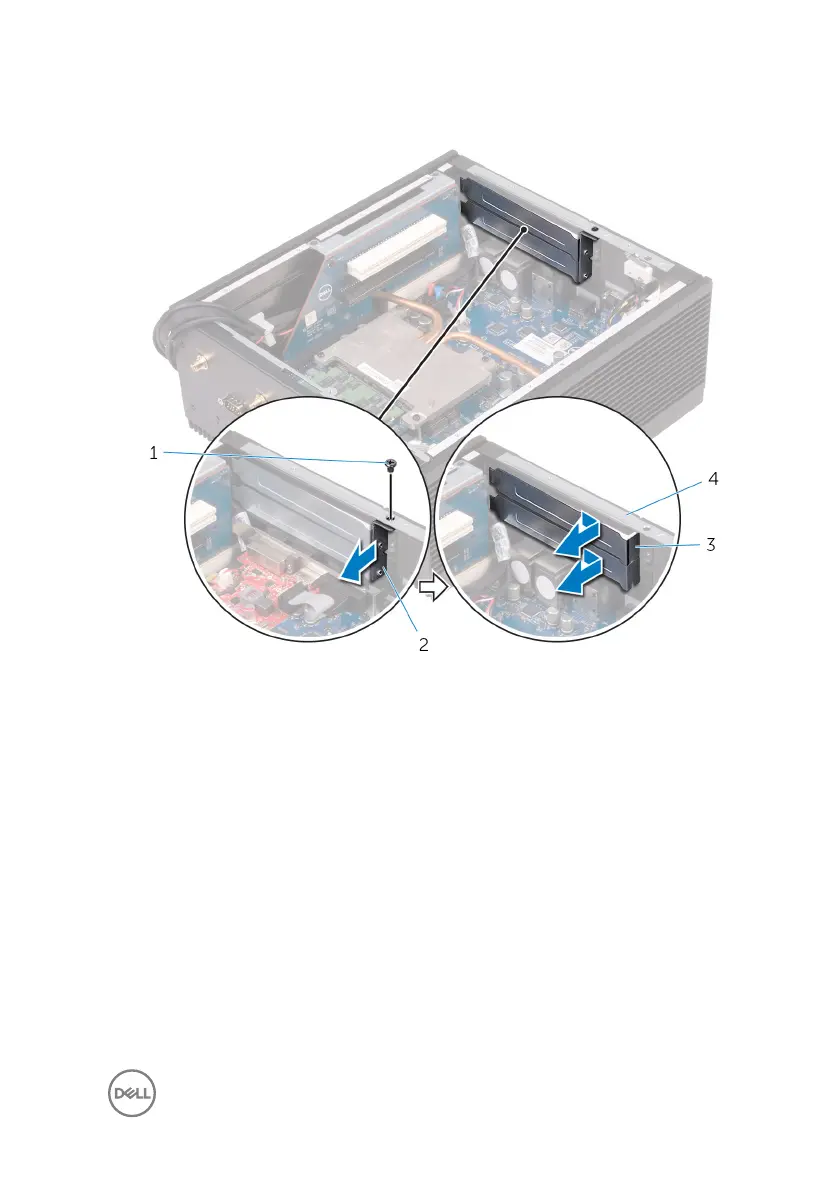

4 Remove the ller plate from the chassis.
1 M3x5 countersunk screw 2 PCI/PCIe ller-plate bracket
3 ller plate 4 chassis
39
