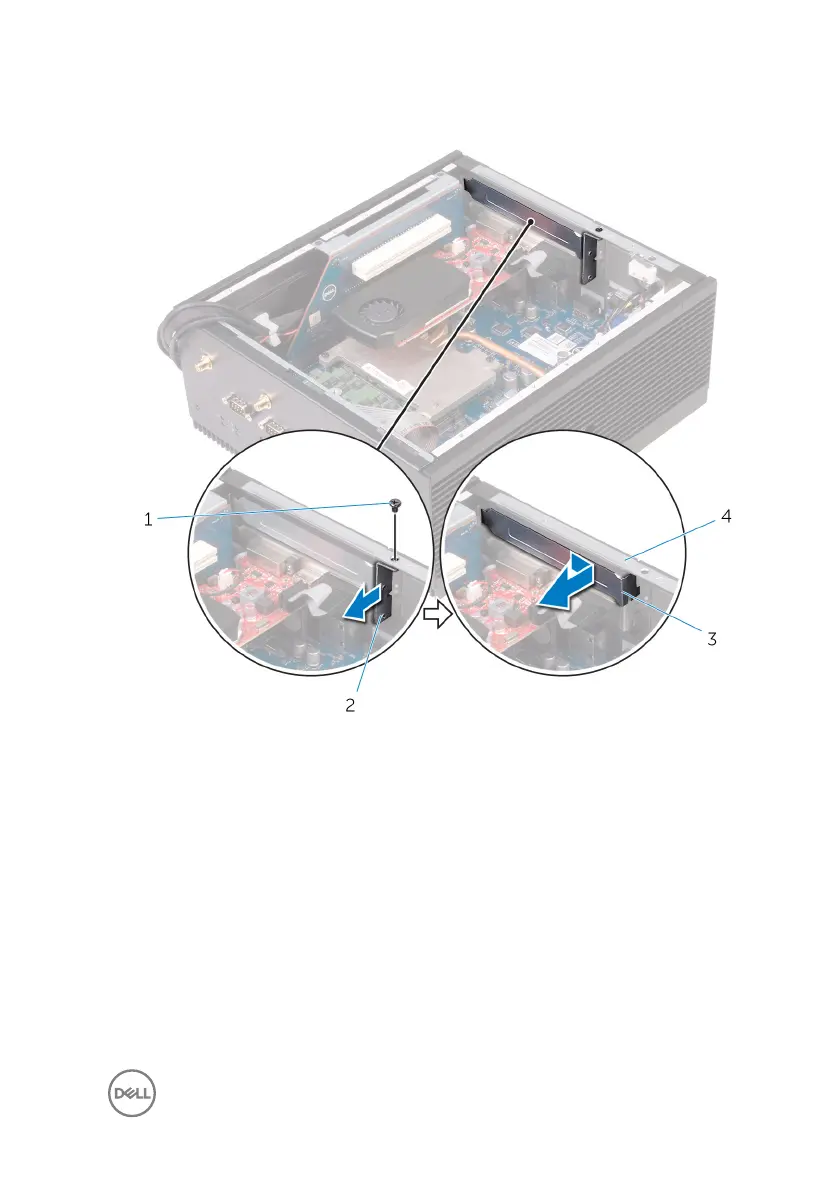

4 Remove the ller-plate from the chassis.
1 M3x5 countersunk screw 2 bracket
3 ller plate 4 chassis
45
