6 Connect the antenna cables to the WLAN card.
The following table provides the antenna-cable color scheme for the WLAN card
supported by the Embedded Box PC.
Connectors on the WLAN card Antenna-cable color
Main (white triangle) White
Auxiliary (black triangle) Black

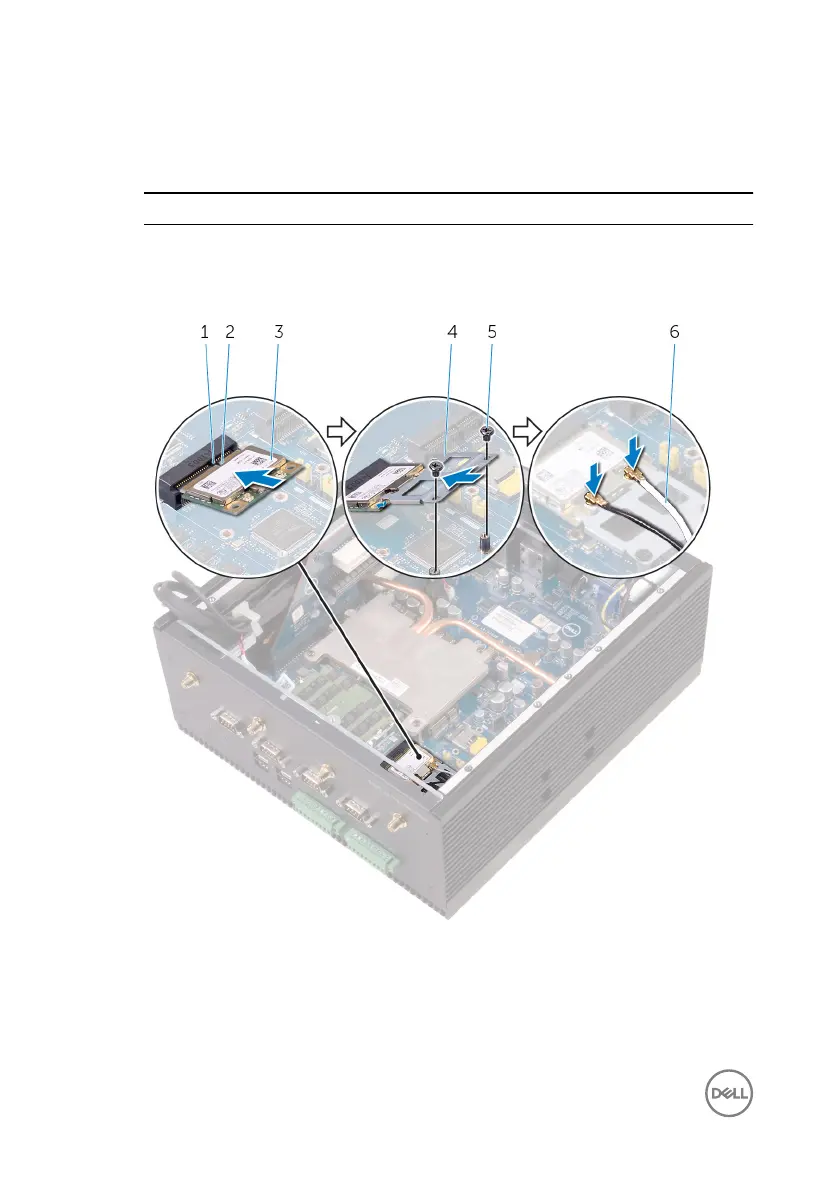

1 tab 2 notch
3 WLAN card 4 WLAN-card bracket
5 M2x3 screws (2) 6 WLAN-antenna cables (2)
62
