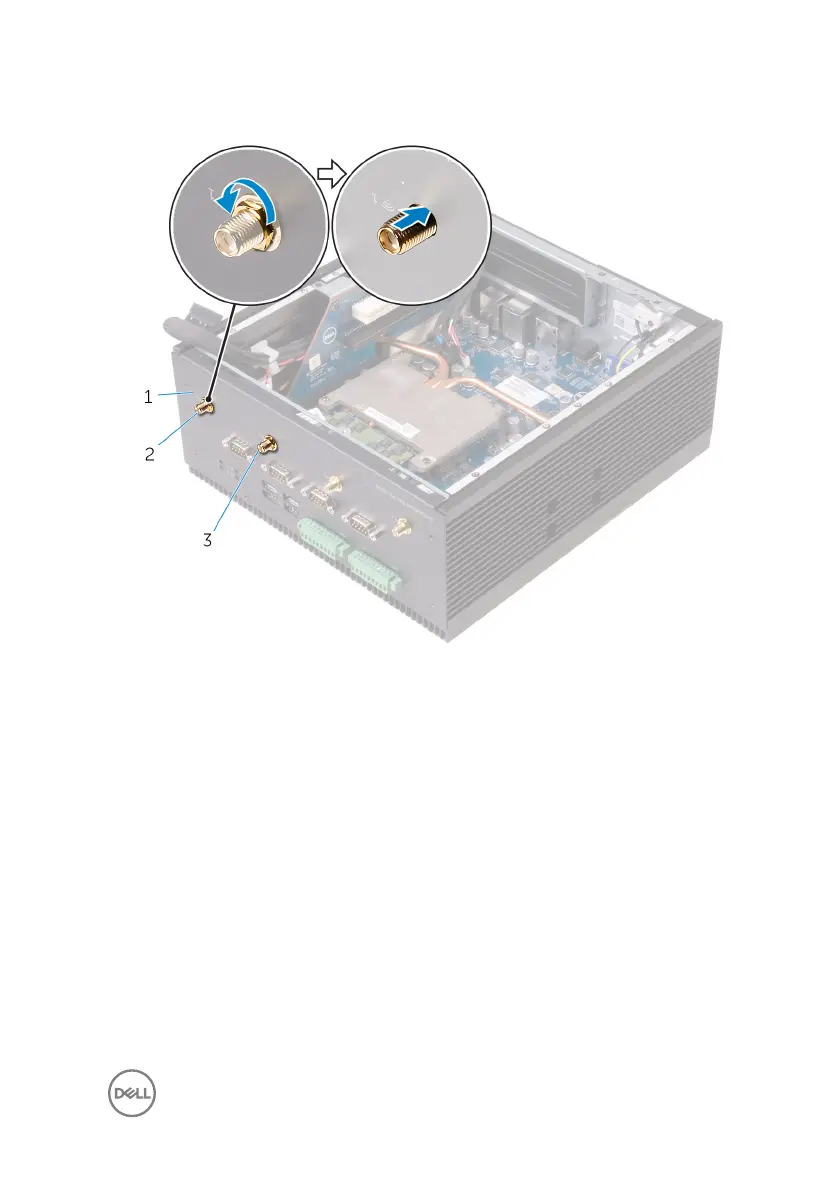

2 Push the WWAN-antenna connectors through the chassis.
1 chassis 2 WWAN-antenna connector
two
3 WWAN-antenna connector
one
3 Disconnect the antenna cables from the WWAN card.
4 Remove the WWAN-antenna cables from the WWAN-cable routing guides on
the chassis.
65
