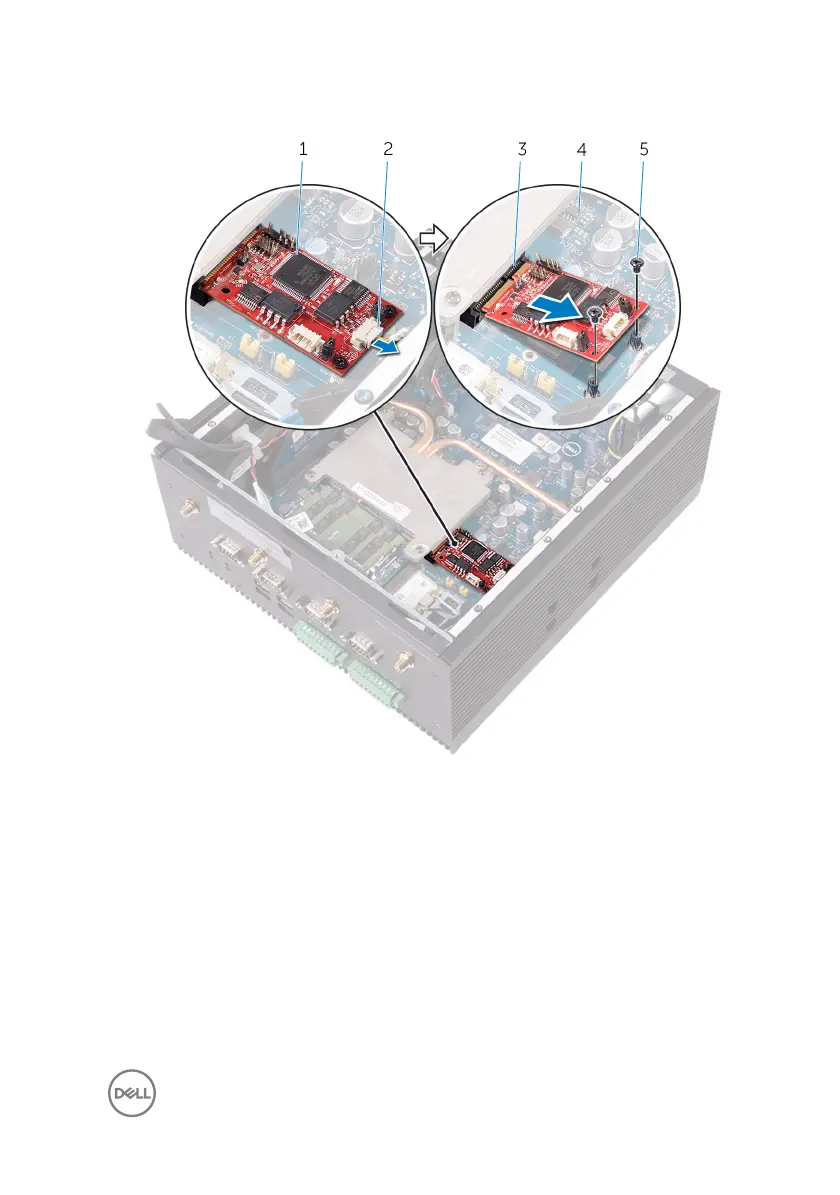

3 Slide and remove the CANbus card from the mPCIE1 slot.
1 CANbus card 2 CANbus cable
3 mPCIE1 slot 4 system board
5 M2x3 screws (2)
81
