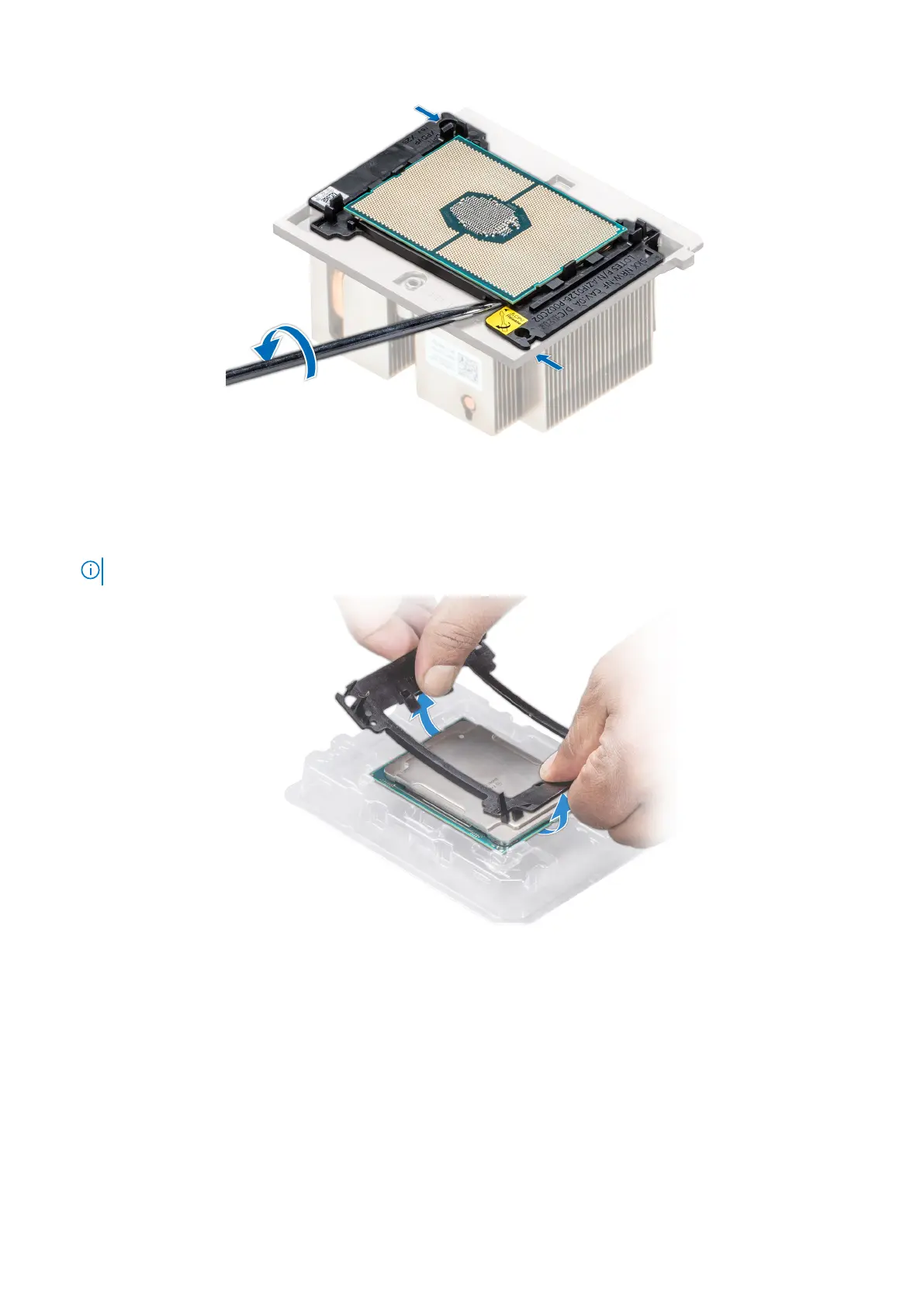

Figure 38. Loosening the processor bracket
4. Lift the bracket and the processor away from the heat sink, and place the processor connector side down on the processor
tray.
5. Flex the outer edges of the bracket to release the bracket from the processor.
NOTE: Ensure that the processor and the bracket are placed in the tray after you remove the heat sink.
Figure 39. Removing the processor bracket
Next steps
1. Install the processor into the processor and heat sink module..
2. Install the non-fabric processor into the processor and heat sink module.
48
Installing and removing enclosure components
