4. Using the Phillips #2 screwdriver, secure the mezzanine card and bracket assembly to the sled using screws.

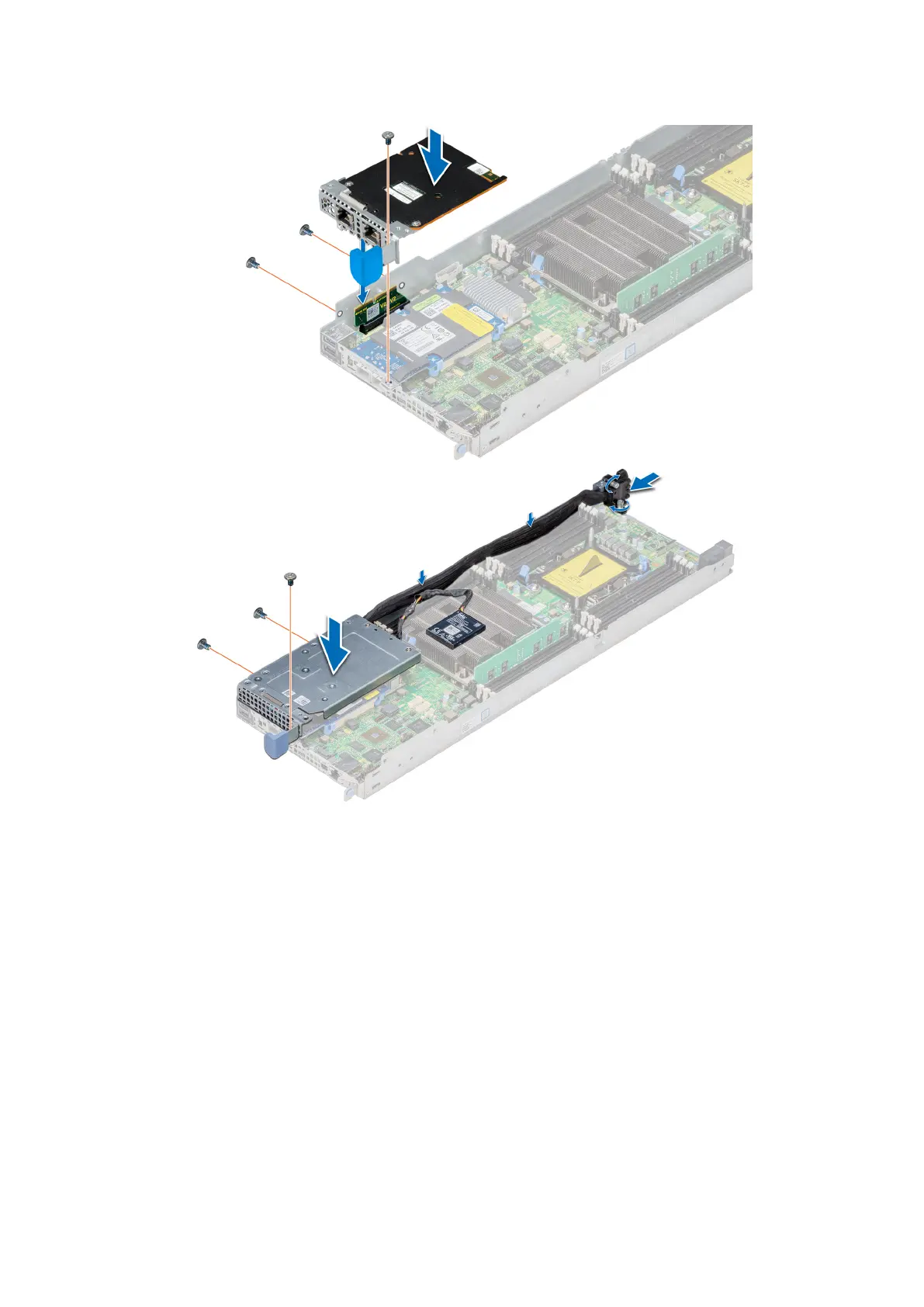

Figure 66. Installing a mezzanine card
Next steps
1. Install the mezzanine card or install the mezzanine card filler bracket.
2. Install the expansion card riser assembly
3. Follow the procedure listed in After working inside your system.
Removing the mezzanine card bridge board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser assembly
4. Remove the mezzanine card.
Installing and removing enclosure components
73
