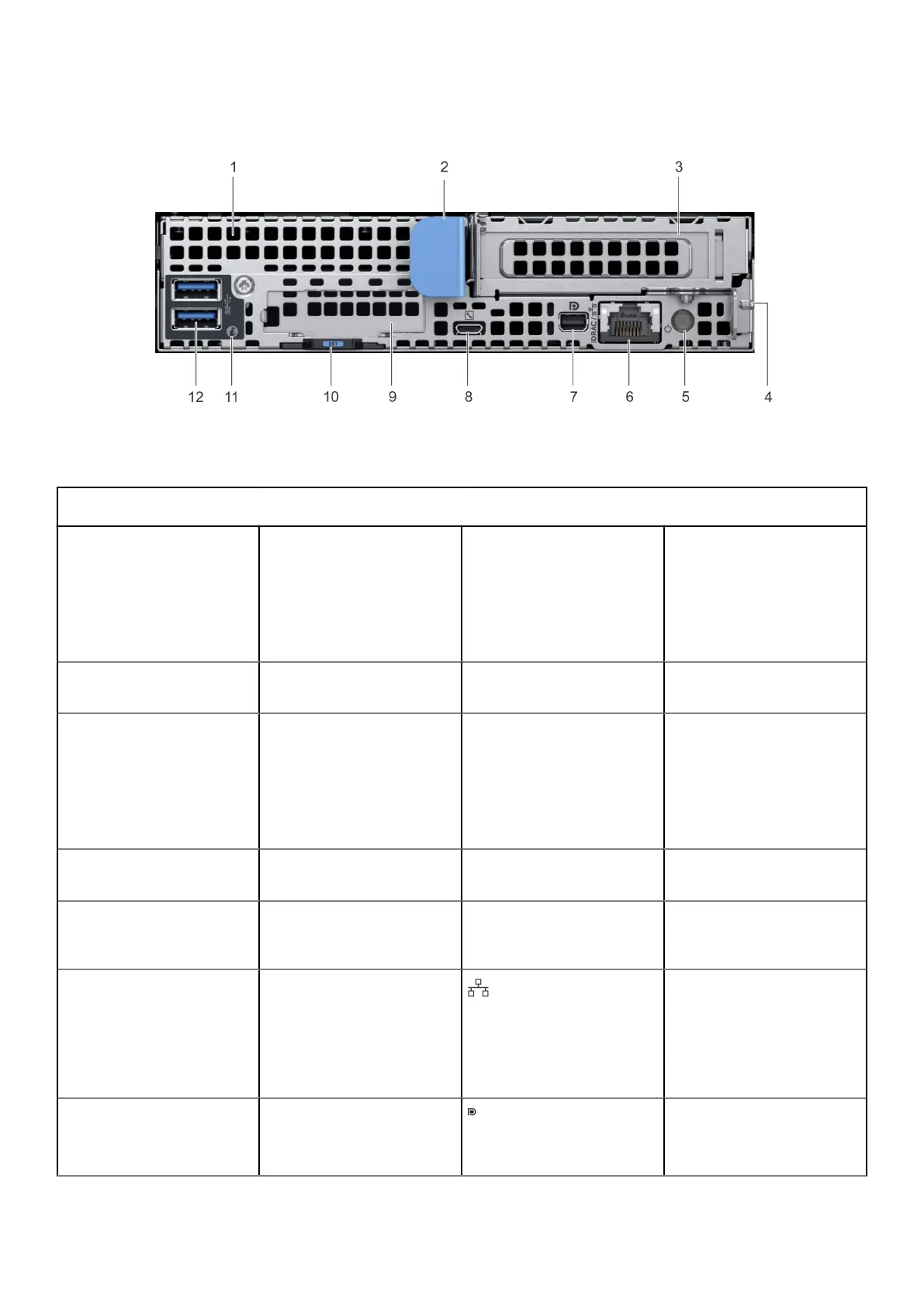

Back view of the PowerEdge C6420 sled
Figure 2. Back view of the PowerEdge C6420 sled
Table 2. Back panel features (continued)
Item Indicator, button, or
connector
Icon Description
1 Mezzanine card slot N/A
Enables you to connect
mezzanine expansion cards.
For more information, see the
Dell EMC PowerEdge C6420
Technical Specifications on
the product documentation
page.
2 Sled release handle N/A
Enables you to remove the
sled from the enclosure.
3 Low Profile PCIe card slot N/A
Enables you to connect PCI
Express expansion cards. For
more information, see the
Dell EMC PowerEdge C6420
Technical Specifications on
the product documentation
page.
4 Sled release lock N/A
Enables you to remove the
sled from the enclosure.
5 Rear power button N/A
Enables you to power on the
sled while accessing it from
the rear.
6 iDRAC or NIC port Enables you to remotely
access iDRAC. For more
information, see the
Integrated Dell Remote
Access Controller User's
Guide at www.dell.com/
idracmanuals
7 Mini display port Enables you to connect a
display device to the system.
For more information, see the
Dell EMC PowerEdge C6420
