Table 2. Back panel features
Item Indicator, button, or
connector
Icon Description
Technical Specifications on
the product documentation
page.
8 iDRAC Direct micro USB port
Enables you to connect a
portable device to the sled.
9 OCP or OPA card slot N/A
Enables you to connect
Open Compute Project (OCP)
or Omni-Path Architecture
(OPA) expansion cards. For
more information, see the
Dell EMC PowerEdge C6420
Technical Specifications on
the product documentation
page.
10 EST pull out tab N/A This tab has the unique
Express Service Code,
Service Tag, and MAC
address labels.
11 System id indicator The System Identification(ID)
LED is available on the back
of the system. Press the
system ID button on the front
of the enclosure to identify a
system in a rack.
12 USB 3.0 port (2)
The USB ports are 9-pin and
3.0-compliant. These ports
enable you to connect USB
devices to the system.

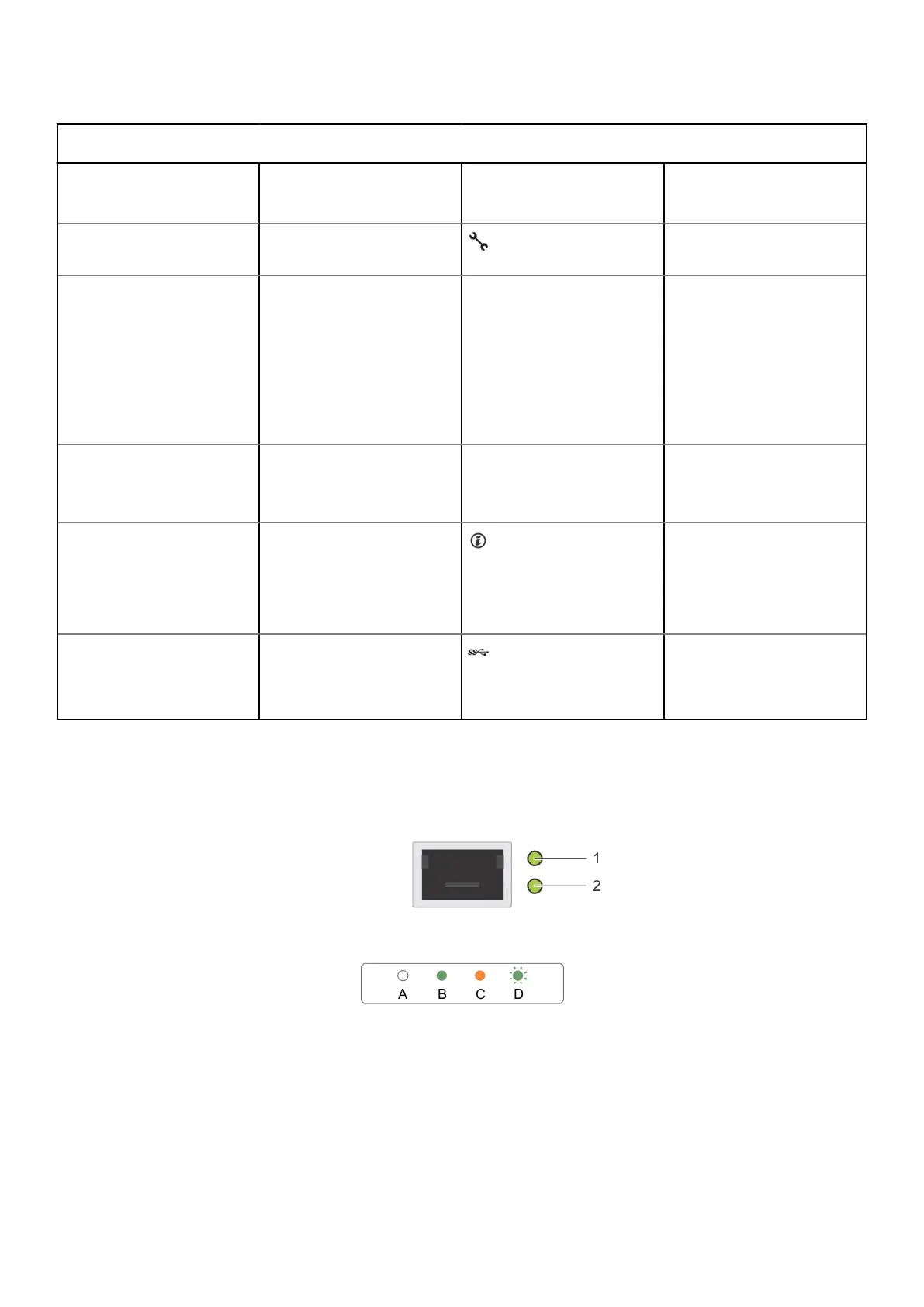

Network ports indicator codes
Figure 3. LAN indicators on the QSFP OCP card
1. Link indicator
2. Activity indicator
Table 3. QSFP port on OCP card indicator codes
Dell EMC PowerEdge C6420 overview 9

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
