Removing the M.2 SATA x16 riser
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the sled from the enclosure.
Steps
1. Using the Phillips #1 screwdriver, loosen the screw that secures the riser to the sled.
2. Lift the riser up to disengage the riser from the connector on the system board.
3. Disconnect the data cable from the riser.

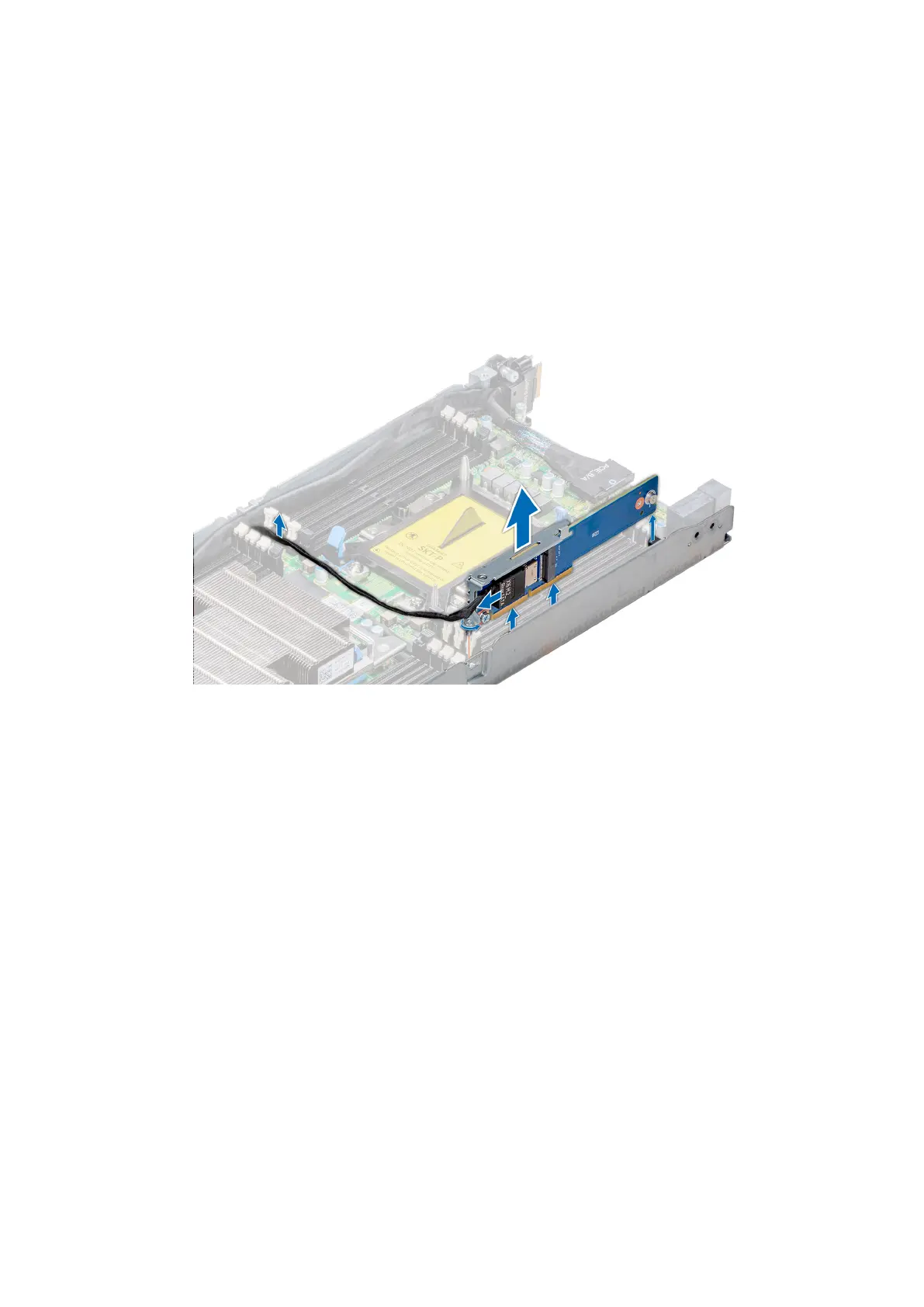

Figure 59. Removing the M.2 SATA x16 riser
Next steps
Install the M.2 SATA x16 riser.
Installing the M.2 SATA x16 riser
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
Steps
1. Connect the data cable to the riser.
2. Insert the keyed end of the M.2 SATA riser into the lock on the system board.
3. Align and insert the edge connector into the connector on the system board.
4. Using the Phillips #2 screwdriver, tighten the screw to secure the riser to the sled.
