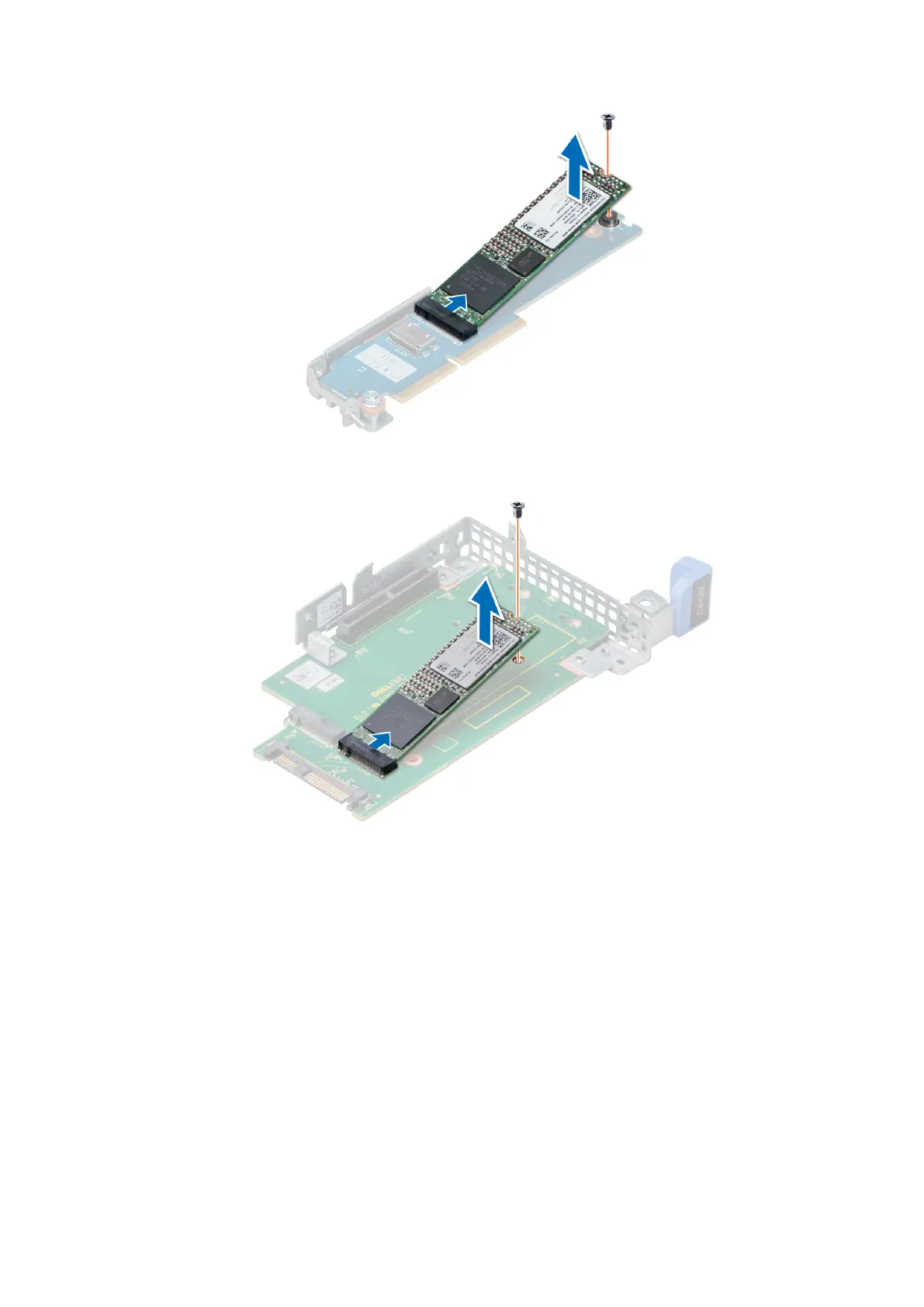

Figure 61. Removing the M.2 SATA card from the M.2 SATA x16 riser
Figure 62. Removing the M.2 SATA card from the x8 mezzanine card
Next steps
Install the M.2 SATA card.
Installing the M.2 SATA card
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
Steps
1. Insert the edge connector of the M.2 SATA card into the connector on the board, and push the card in.
2. Using the Phillips #1 screwdriver, secure the card in place.
