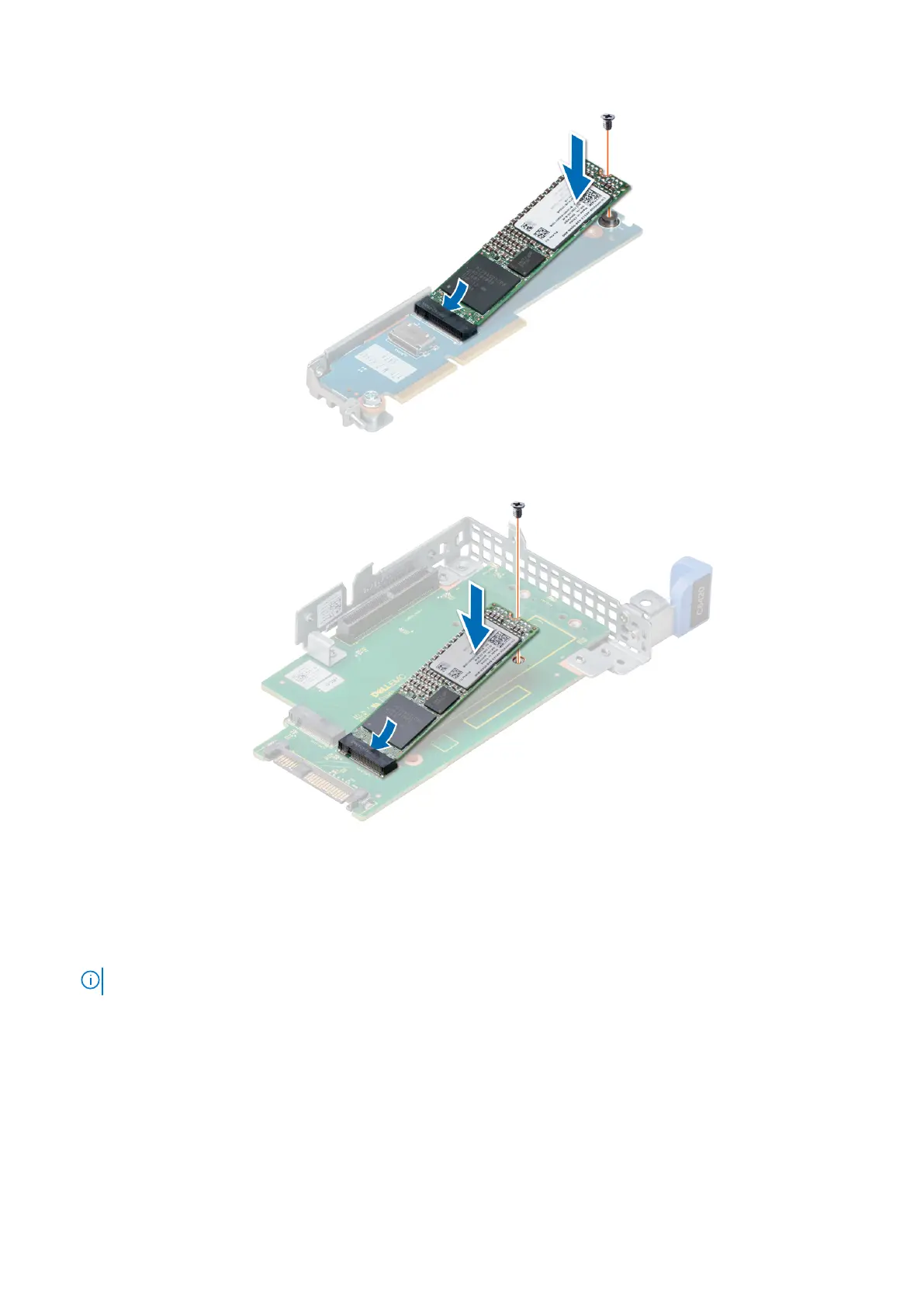

Figure 63. Installing the M.2 SATA card on the SATA x16 riser
Figure 64. Installing the M.2 SATA card on the SATA x8 mezzanine card
Next steps
1. If removed, install the expansion card riser assembly.
2. Install the M.2 x16 riser or the M.2 SATA x8 mezzanine card.
NOTE: The procedure to install the M.2 SATA x8 mezzanine card is similar to removing a mezzanine card.
3. Install the sled into the enclosure.
4. Follow the procedure listed in After working inside your system.
