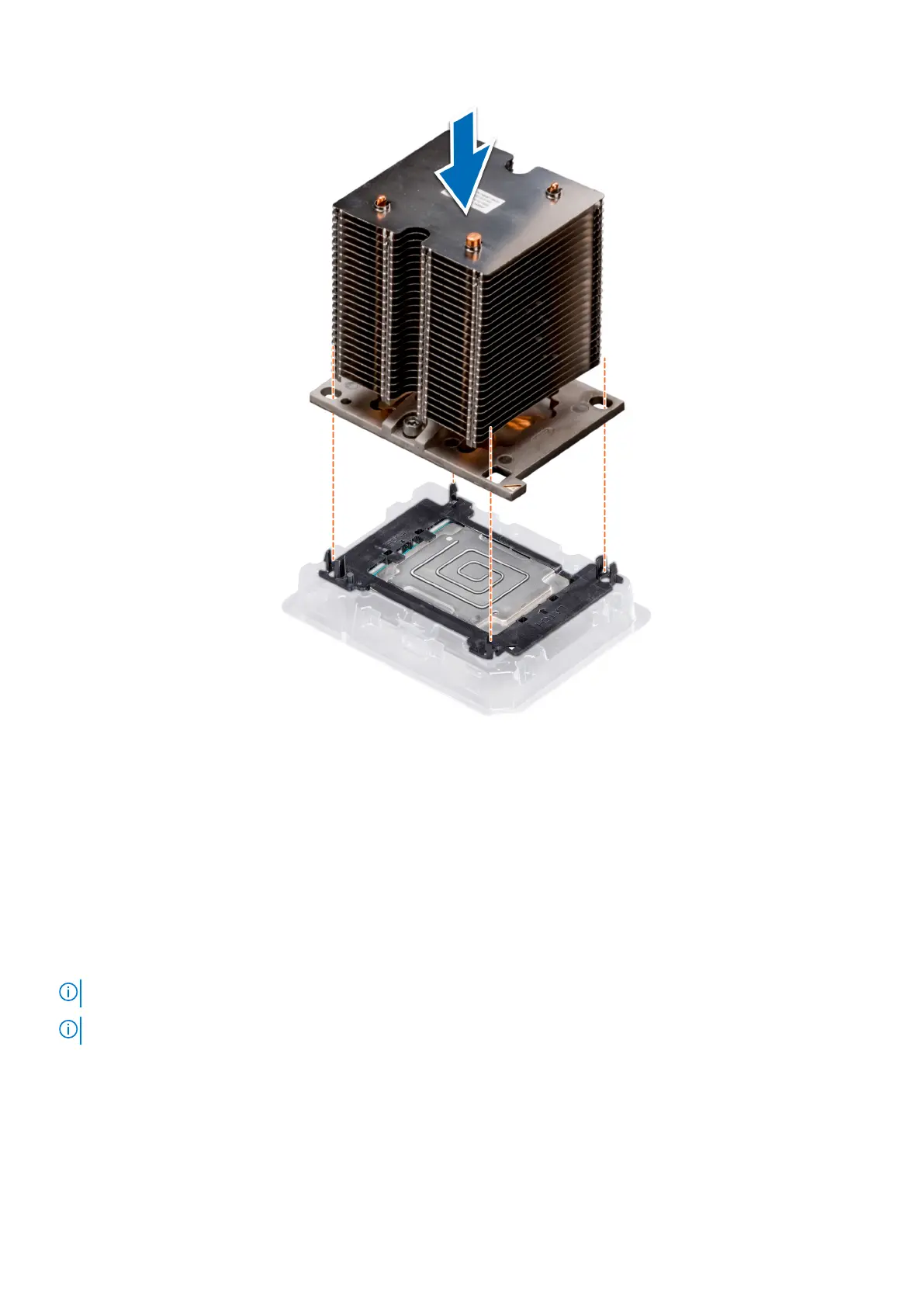

Figure 42. Installing the heat sink onto the processor
Next steps
1. Install the processor and heat sink module.
2. Install the air shroud.
3. Follow the procedure listed in After working inside your system.
Removing the fabric and sideband cables
Prerequisites
NOTE: The procedure to remove the carrier card is similar to removing an OCP card.
NOTE: Route the fabric cable for CPU 2 under the heat sink of CPU1.
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
Steps
1. Pull the blue pull tab on the locking bar up to release the connector from the lock on the processor base plate.
Installing and removing enclosure components
51
