Rear view of the system

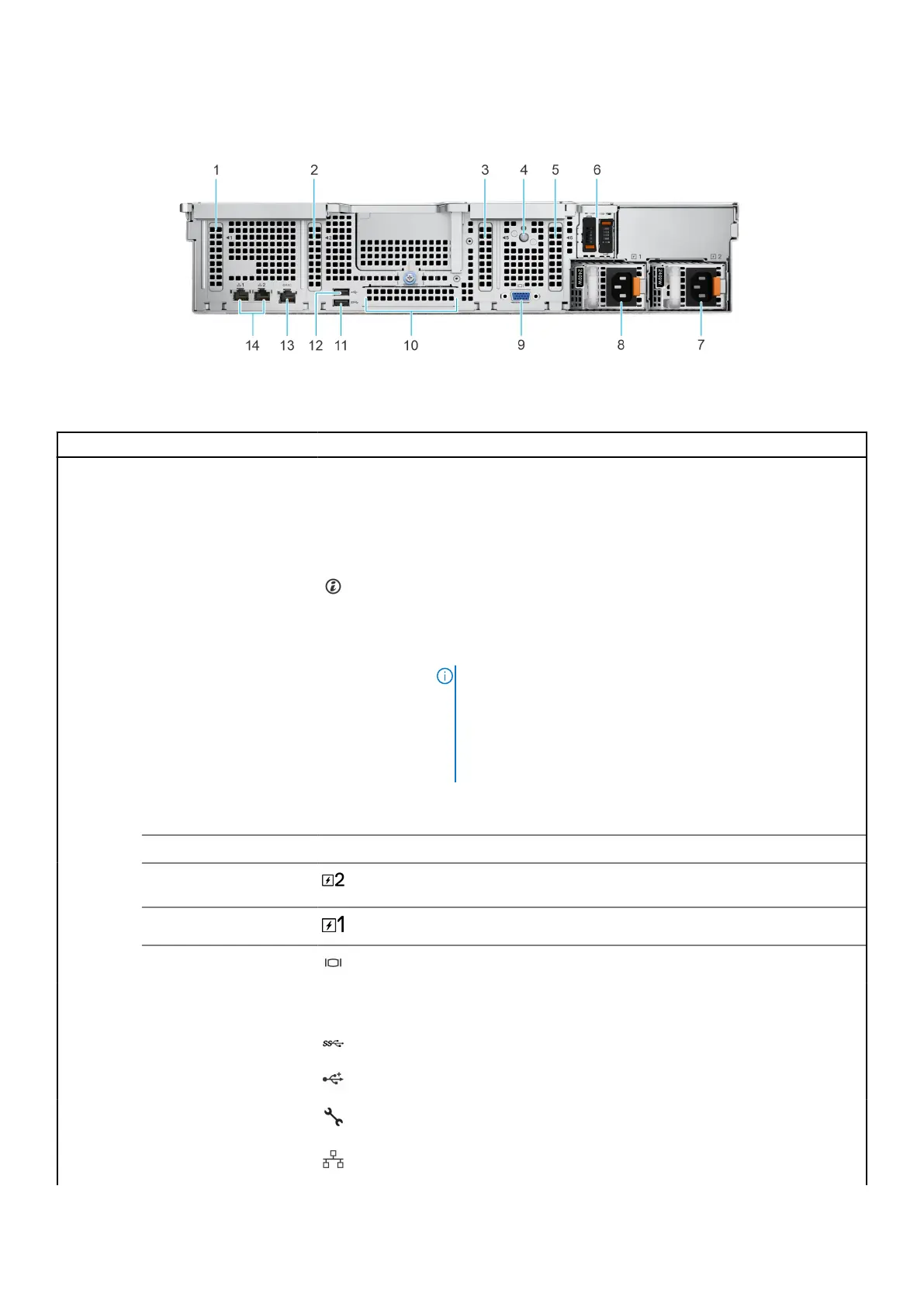

Figure 7. Rear view of the system
Table 7. Rear view of the system
Item Ports, panels, or slots Icon Description
1 PCIe expansion card slot 1 N/A Enables you to connect PCI Express expansion cards.
2 PCIe expansion card slot
2
N/A Enables you to connect PCI Express expansion cards.
3 PCIe expansion card slot
5
N/A Enables you to connect PCI Express expansion cards.
4 System identification
button
Press the system ID button:
● To locate a particular system within a rack.
● To turn the system ID on or off.
To reset iDRAC, press and hold the button for more than 16
seconds.
NOTE:
● To reset iDRAC using system ID, ensure that the system ID
button is enabled in the iDRAC setup.
● If the system stops responding during POST, press and hold
the system ID button (for more than 5 seconds) to enter
the BIOS progress mode.
5 PCIe expansion card slot
6
N/A Enables you to connect PCI Express expansion cards.
6
BOSS S2 module N/A Enables you to connect BOSS S2 module.
7
Power supply unit (PSU
2)
Indicates the PSU 2.
8
Power supply unit (PSU 1) Indicates the PSU 1.
9
VGA port Enables you to connect a display device to the system.
10 OCP NIC port (optional) N/A This port supports OCP 3.0. The NIC ports are integrated on the
OCP card which is connected to the system board.
11 USB 3.0 port This port is USB 3.0-compliant.
12 USB 2.0 port This port is USB 2.0-compliant.
13 iDRAC dedicated port Enables you to remotely access iDRAC. For more information, see
the iDRAC User's Guide at www.dell.com/poweredgemanuals
14 NIC ports (1, 2) The NIC ports are embedded on the LOM card that is connected to
the system board to provide network connectivity. These NIC ports
System overview 13
