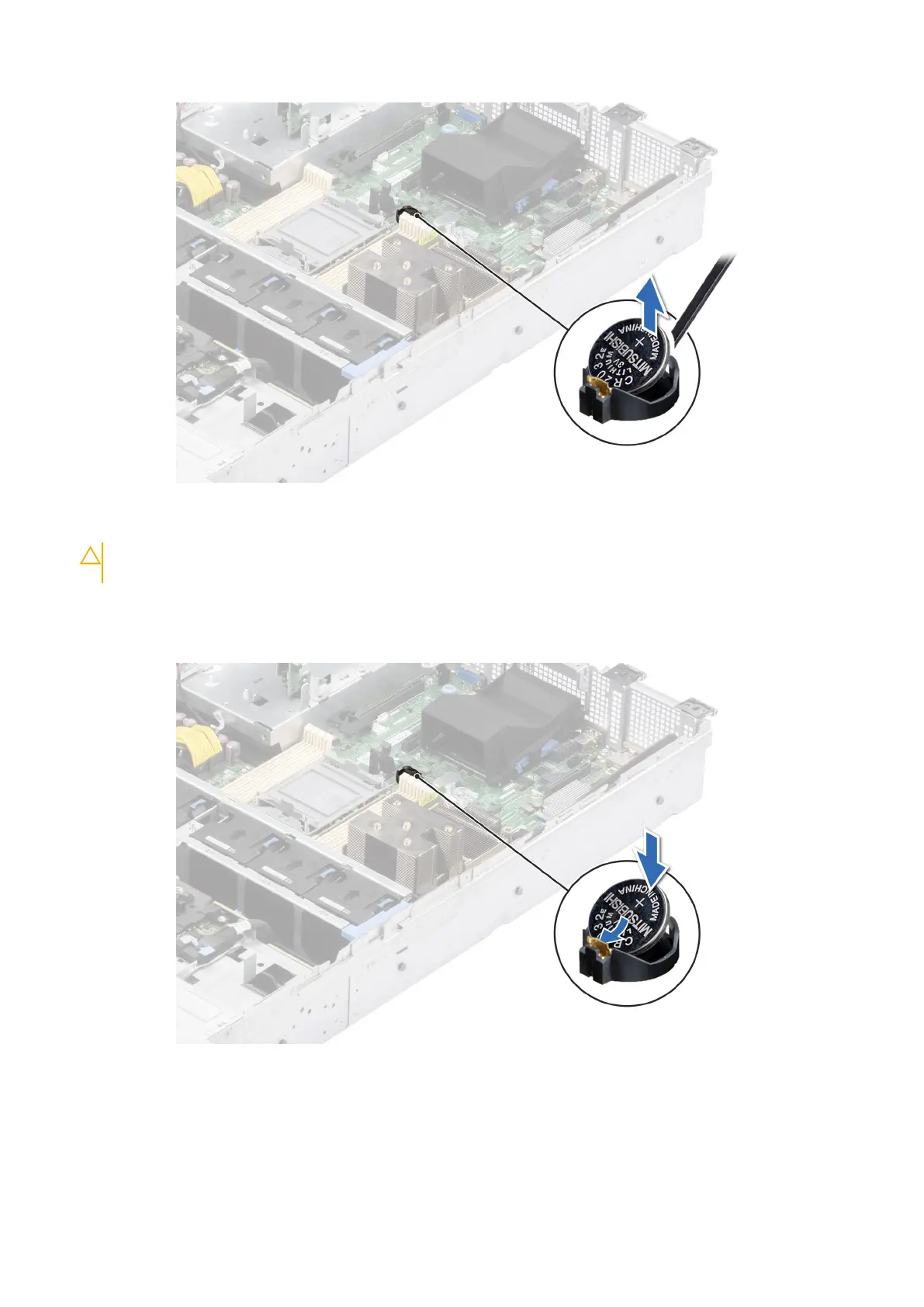

Figure 90. Removing the system battery
CAUTION: To avoid damage to the battery connector, you must firmly support the connector while installing
or removing a battery.
2. To install a new system battery:
a. Hold the battery with the positive side facing up and slide it under the securing tabs.
b. Press the battery into the connector until it snaps into place.
Figure 91. Installing the system battery
Next steps
1. Follow the procedure listed in the After working inside your system.
2. Confirm that the battery is operating properly, by performing the following steps:
Installing and removing system components
93
