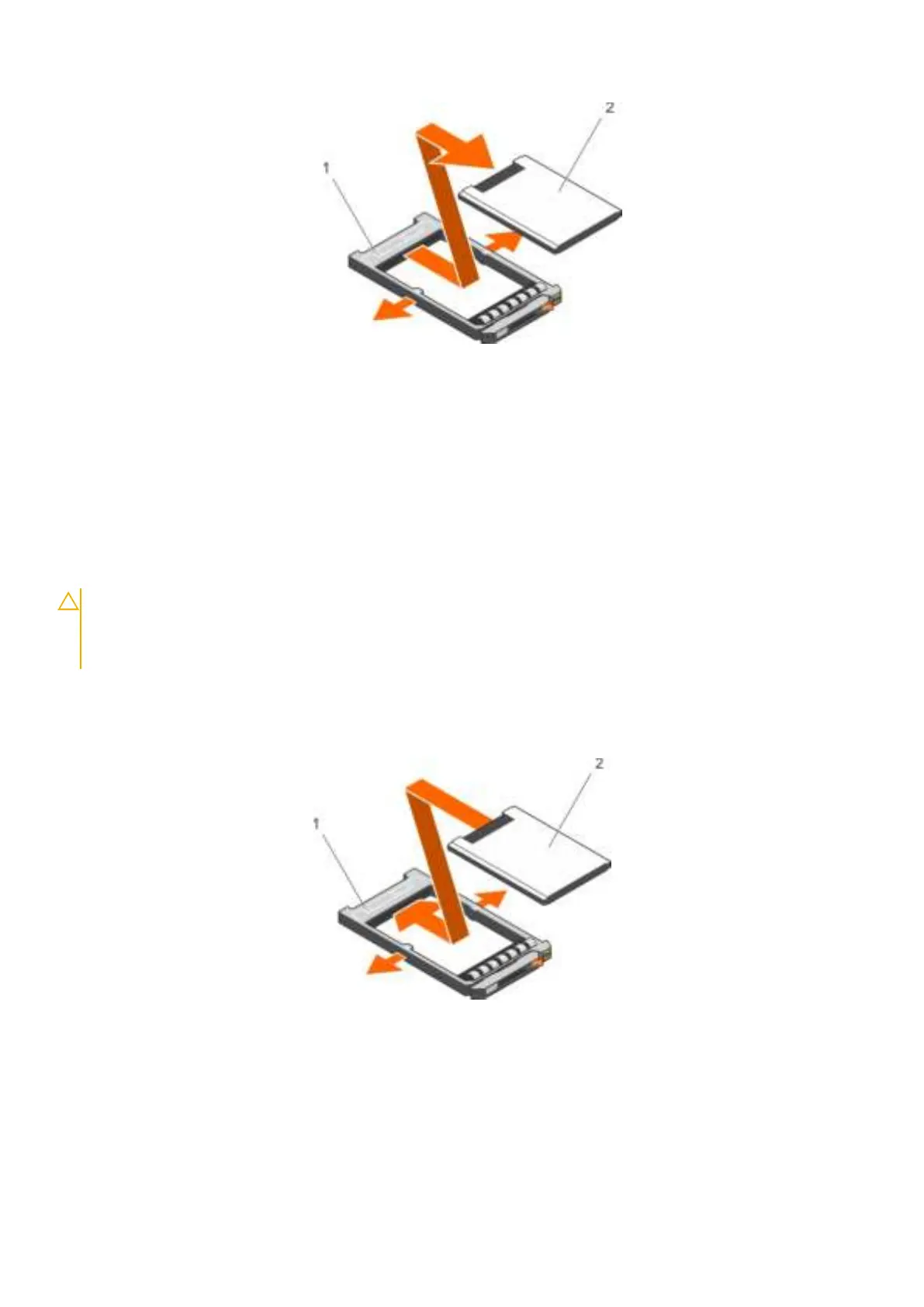

Figure 105. Removing a 1.8-inch hard drive into a hard drive carrier
a. hard drive carrier
b. hard drive
Related references
Safety instructions on page 67
Installing a 1.8-inch hard drive into a hard drive carrier
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that are shipped with your product.
Steps
Insert the hard drive into the hard drive carrier with the connector end of the hard drive toward the back.
When aligned correctly, the back of the hard drive is flush with the back of the hard drive carrier.
Figure 106. Installing a 1.8-inch hard drive into a hard drive carrier
a. hard drive carrier
b. hard drive
Hard drive backplane
Depending on your system configuration:
170 Installing and removing system components
