Dell EMC PowerEdge R740 - Left Control Panel View

Table 1. Features available on the front of the system
Item Ports, panels and slots Icon Description
1 Left control panel N/A Contains system health and system ID, status LED and optional
iDRAC Quick Sync 2 (wireless).
2 Hard drives N/A
Enable you to install hard drives that are supported on your system.
For more information about hard drives, see the Technical
specications section.
3 Optical drive (optional) N/A
Enables you to retrieve and store data on optical discs such as
compact discs (CD) and digital versatile discs (DVD). For more
information, see the Technical specications section.
4 USB 3.0 port (optional)
The USB ports are 9-pin, 3.0-compliant. These ports enable you to
connect USB devices to the system.
5 Right control panel N/A Contains the power button, VGA port, iDRAC Direct micro USB port,
and two USB 2.0 ports.
6 Information tag N/A
The Information Tag is a slide-out label panel that contains system
information such as Service Tag, NIC, MAC address, and so on. If you
have opted for secure default access to iDRAC, the Information tag
also contains the iDRAC secure default password.
Related links
Technical specications

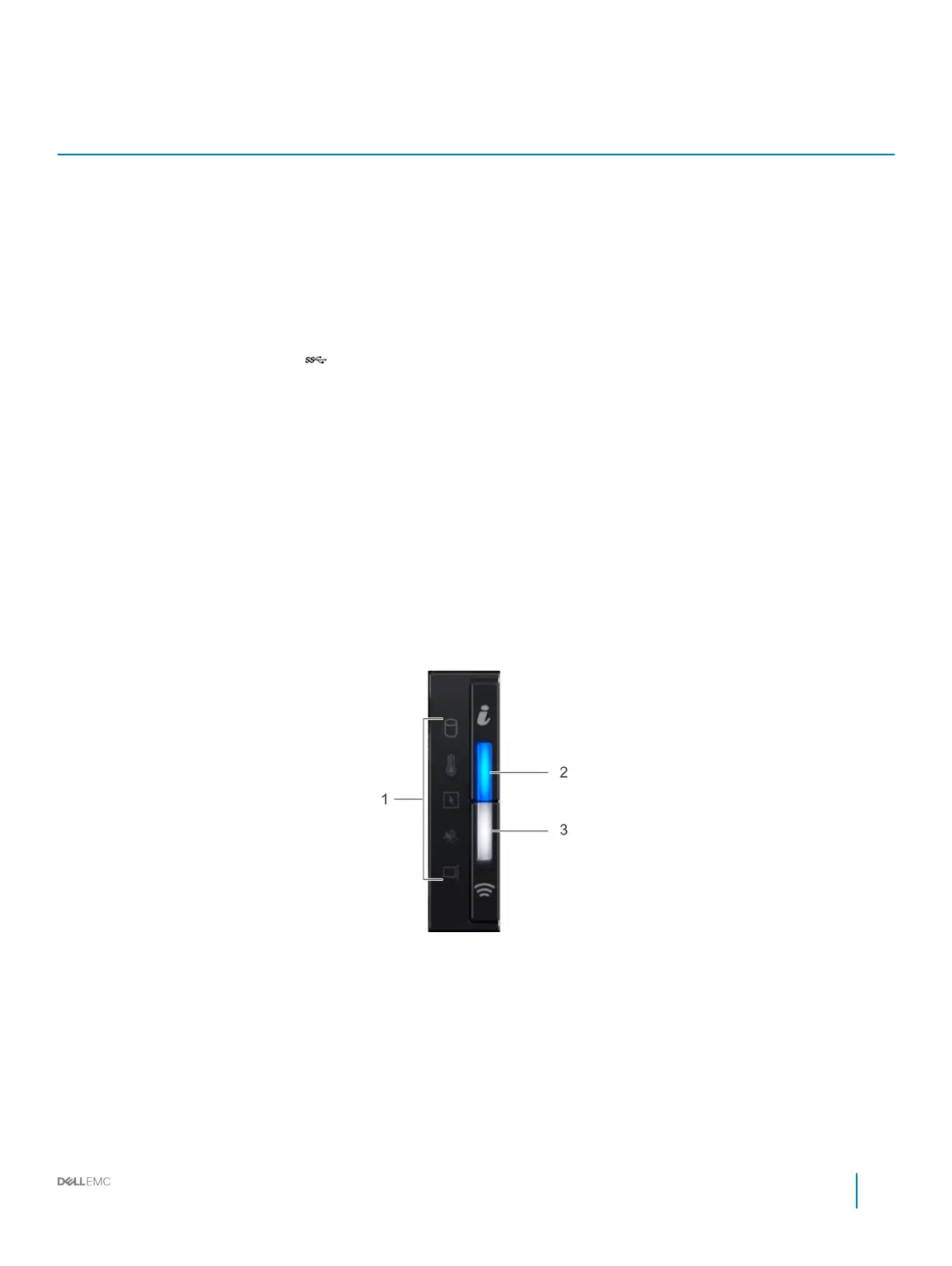

Left control panel view
Figure 5. Left control panel view
