Cable routing

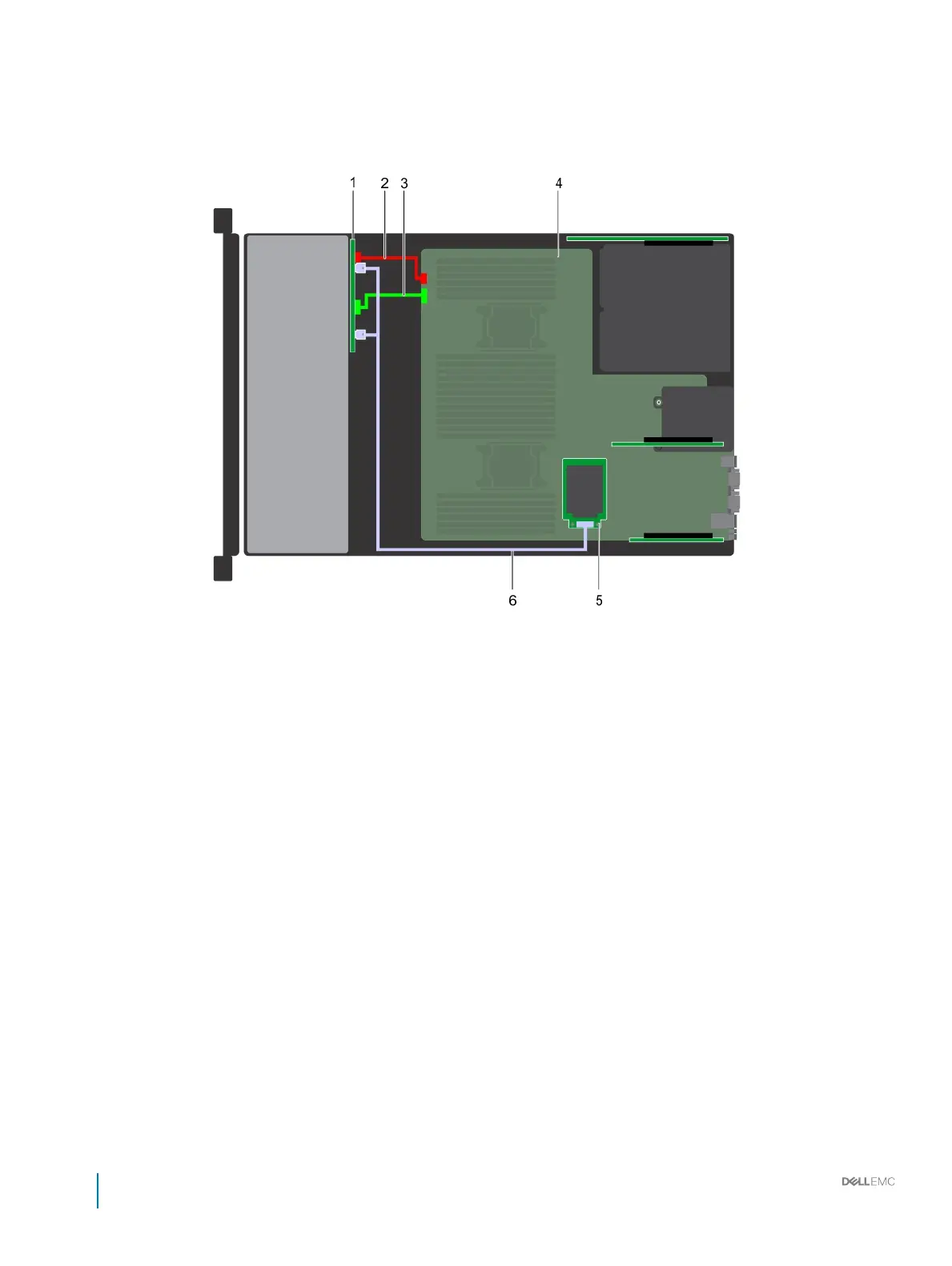

Figure 86. Cable routing – 8 x 2.5 inch hard drive backplane with mini PERC
1
backplane 2 backplane signal cable
3 backplane power cable 4 system board
5 mini PERC 6 SAS cable
