Dell EMC PowerEdge R740 - Installing NVDIMM-N Battery into Air Shroud

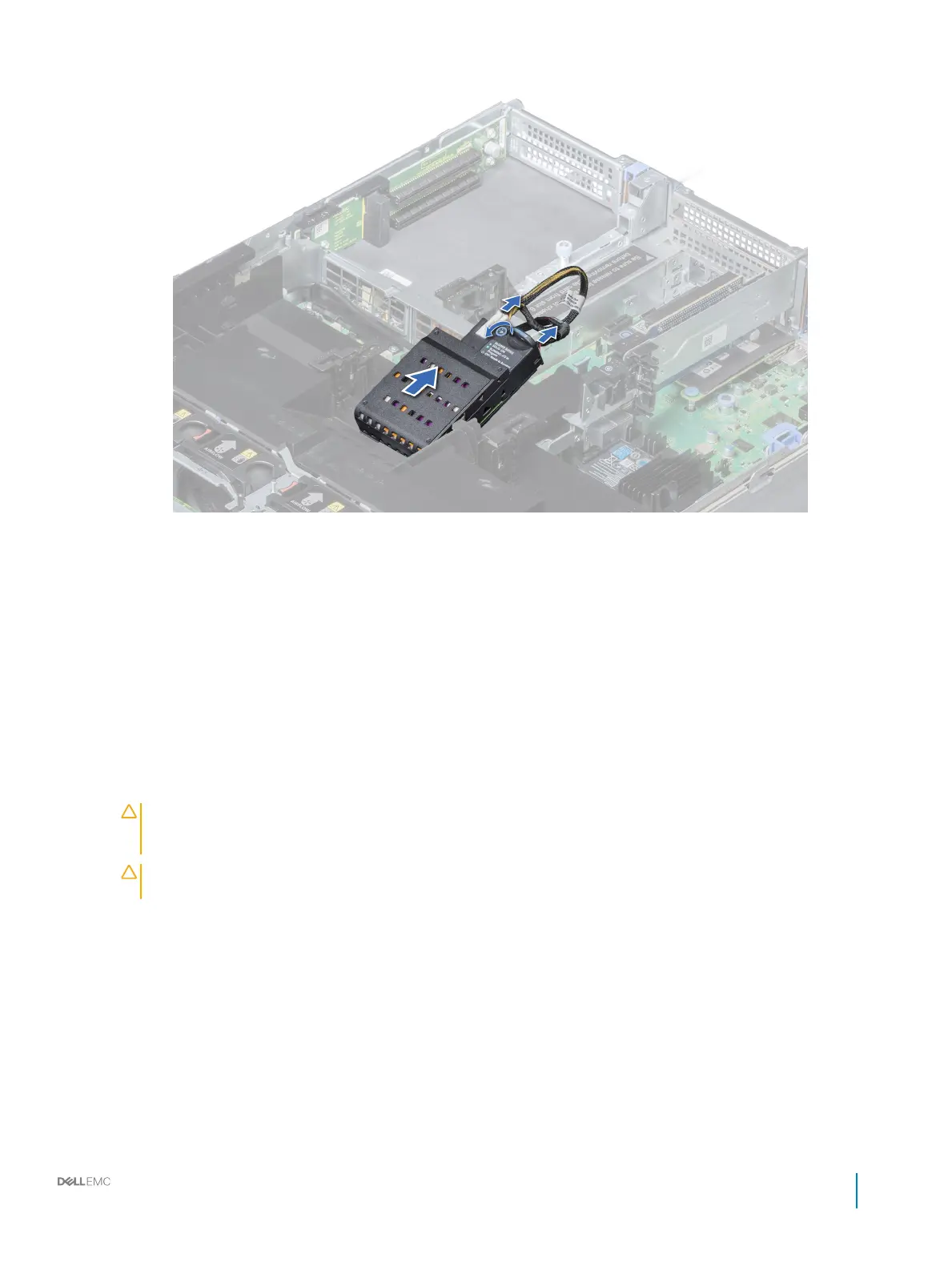

Figure 33. Removing the NVDIMM-N battery from the air shroud
Next steps
Install the NVDIMM-N battery into the air shroud.
Related links
Installing NVDIMM-N battery into air shroud
Installing NVDIMM-N battery into air shroud
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
CAUTION
: NVDIMM-N battery is not hot swappable. To prevent data loss and potential damage to your system, ensure
that your system, LEDs on system, LEDs on NVDIMM-N and LEDs on NVDIMM-N battery are turned o before
installing the NVDIMM-N battery.
CAUTION: To avoid damage to the battery connector, you must rmly support the connector while installing or
removing a battery.
Steps
1 Incline the NVDIMM-N battery at an angle and place the battery on the air shroud slot.
2 Using Phillips #2 screwdriver, tighten the screw to secure the NVDIMM-N battery.
3 Connect the cables to the NVDIMM-N battery.
Dell EMC PowerEdge R740 Installation and Service Manual
Installing and removing system components
83
