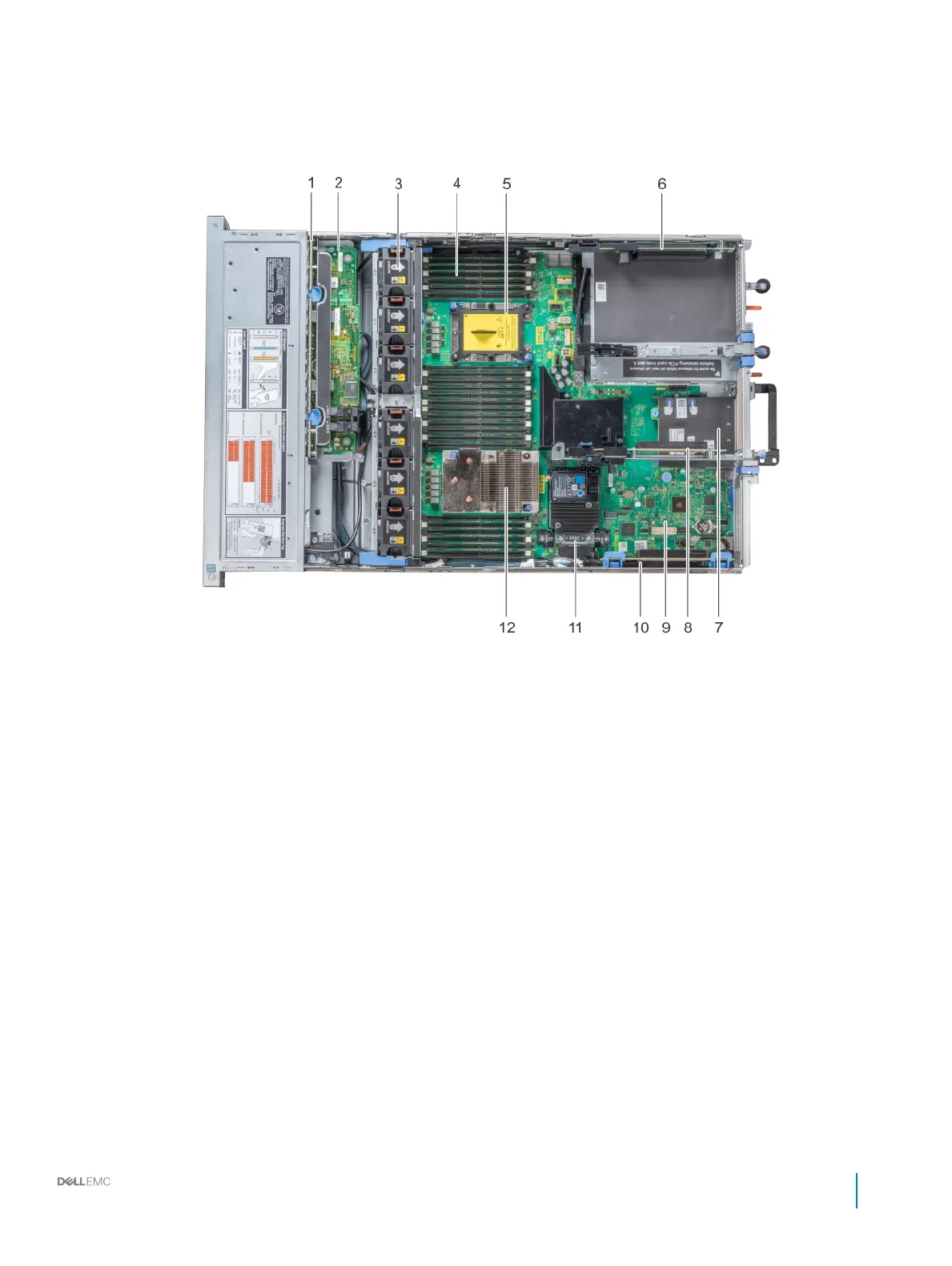

Figure 23. Inside the system
1
hard drive backplane 2 backplane expander card
3 cooling fan in the cooling fan assembly (6) 4 memory module
5 CPU2 processor and heat sink module socket (with dust cover) 6 expansion card riser 3
7 network daughter card 8 expansion card riser 2
9 system board 10 expansion card riser 1
11 integrated storage controller card 12 CPU1 processor and heat sink module
Dell EMC PowerEdge R740 Installation and Service Manual
Installing and removing system components
73
