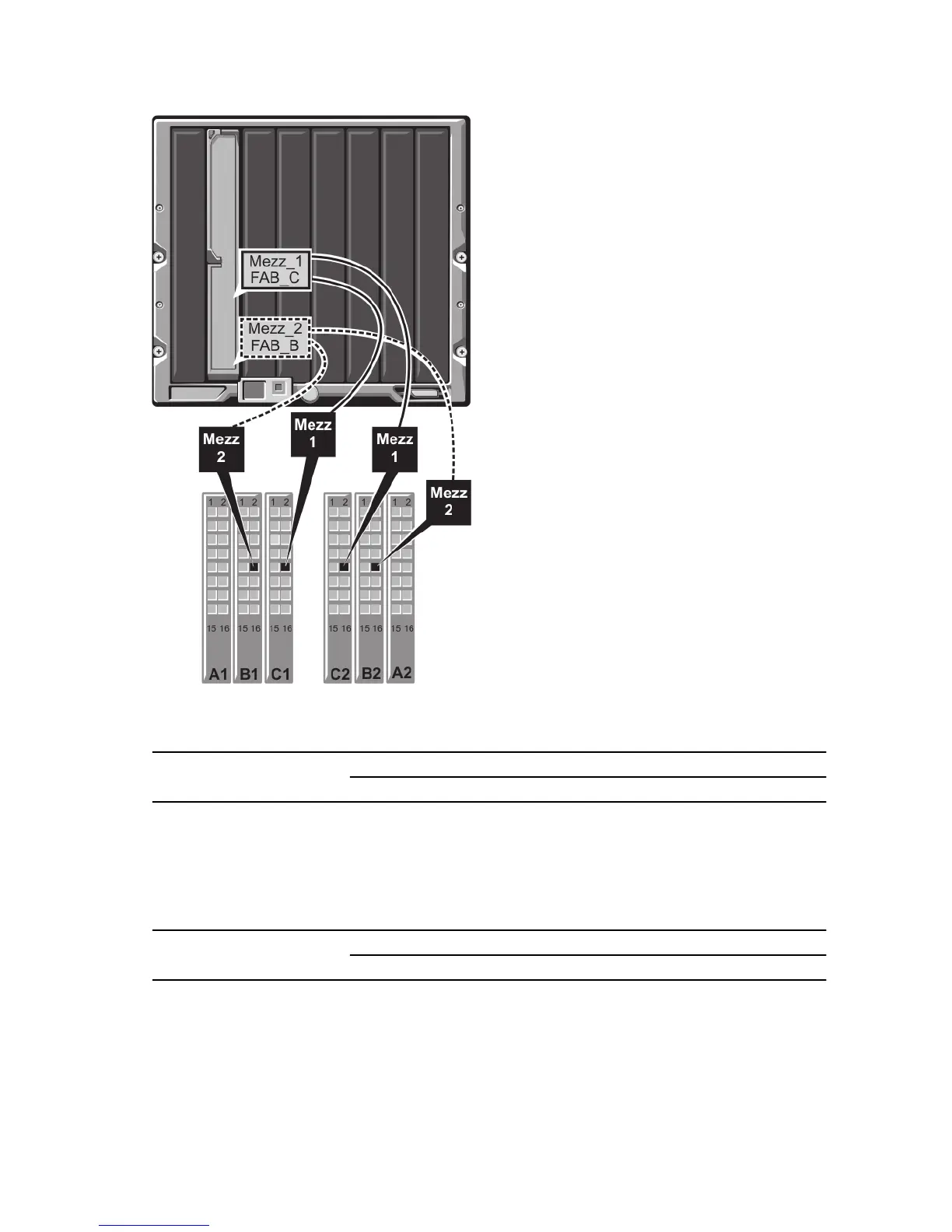

Figure 14. Example of PowerEdge M610x Port Mapping – Blade 2
Table 4. I/O Module Port Assignments - Full-Height Blades (not applicable for PowerEdge M610x)
Blade 1 I/O Module
B1 C1 C2 B2
Mezz1_Fab_C Port 1 Port 1
Mezz2_Fab_B Port 1 Port 1
Mezz3_Fab_C Port 9 Port 9
Mezz4_Fab_B Port 9 Port 9
Blade 2 I/O Module
B1 C1 C2 B2
Mezz1_Fab_C Port 2 Port 2
Mezz2_Fab_B Port 2 Port 2
41

Dell External M1000e t Specifications

General

Rack Units	10U
Model	M1000e
Power Supply	Up to 6 power supply units (PSUs)
Form Factor	Enclosure
Cooling	Redundant, hot-swappable fans
Management	Dell Chassis Management Controller (CMC)
Compatibility	Dell PowerEdge blade servers
Networking	Fibre Channel, InfiniBand
