Dell External M1000e t User Manual

Blade 7 I/O Module
B1 C1 C2 B2
Mezz3_Fab_C Port 15 Port 15
Mezz4_Fab_B Port 15 Port 15
Blade 8 I/O Module
B1 C1 C2 B2
Mezz1_Fab_C Port 8 Port 8
Mezz2_Fab_B Port 8 Port 8
Mezz3_Fab_C Port 16 Port 16
Mezz4_Fab_B Port 16 Port 16

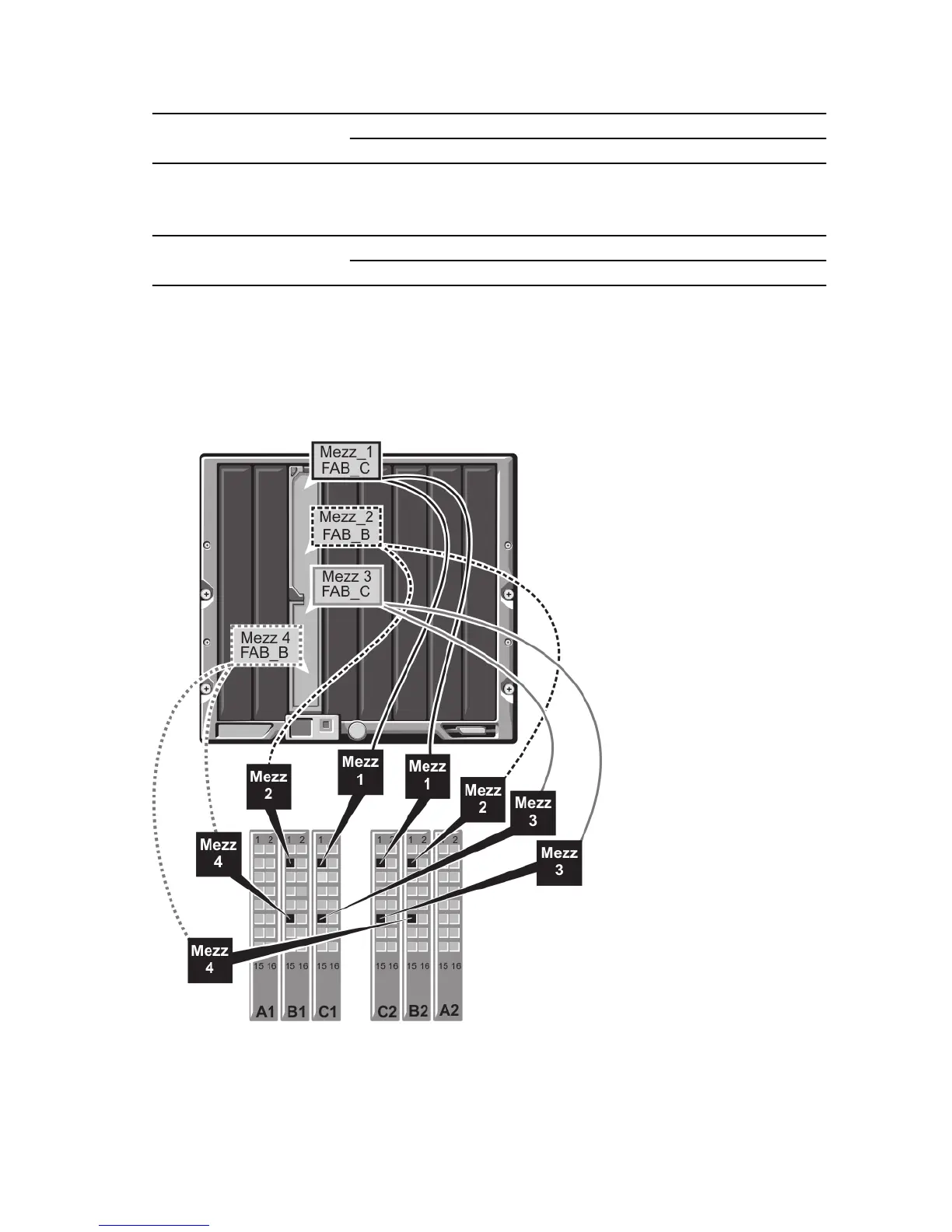

The following figure shows the port connections for a full-height blade in bay 3 with four mezzanine cards.
Figure 15. Example of Full-Height Blade Port Mapping – Blade 3 (not applicable for PowerEdge M610x)
43

Dell External M1000e t Specifications

General

Rack Units	10U
Model	M1000e
Power Supply	Up to 6 power supply units (PSUs)
Form Factor	Enclosure
Cooling	Redundant, hot-swappable fans
Management	Dell Chassis Management Controller (CMC)
Compatibility	Dell PowerEdge blade servers
Networking	Fibre Channel, InfiniBand
