Dell External M1000e t User Manual

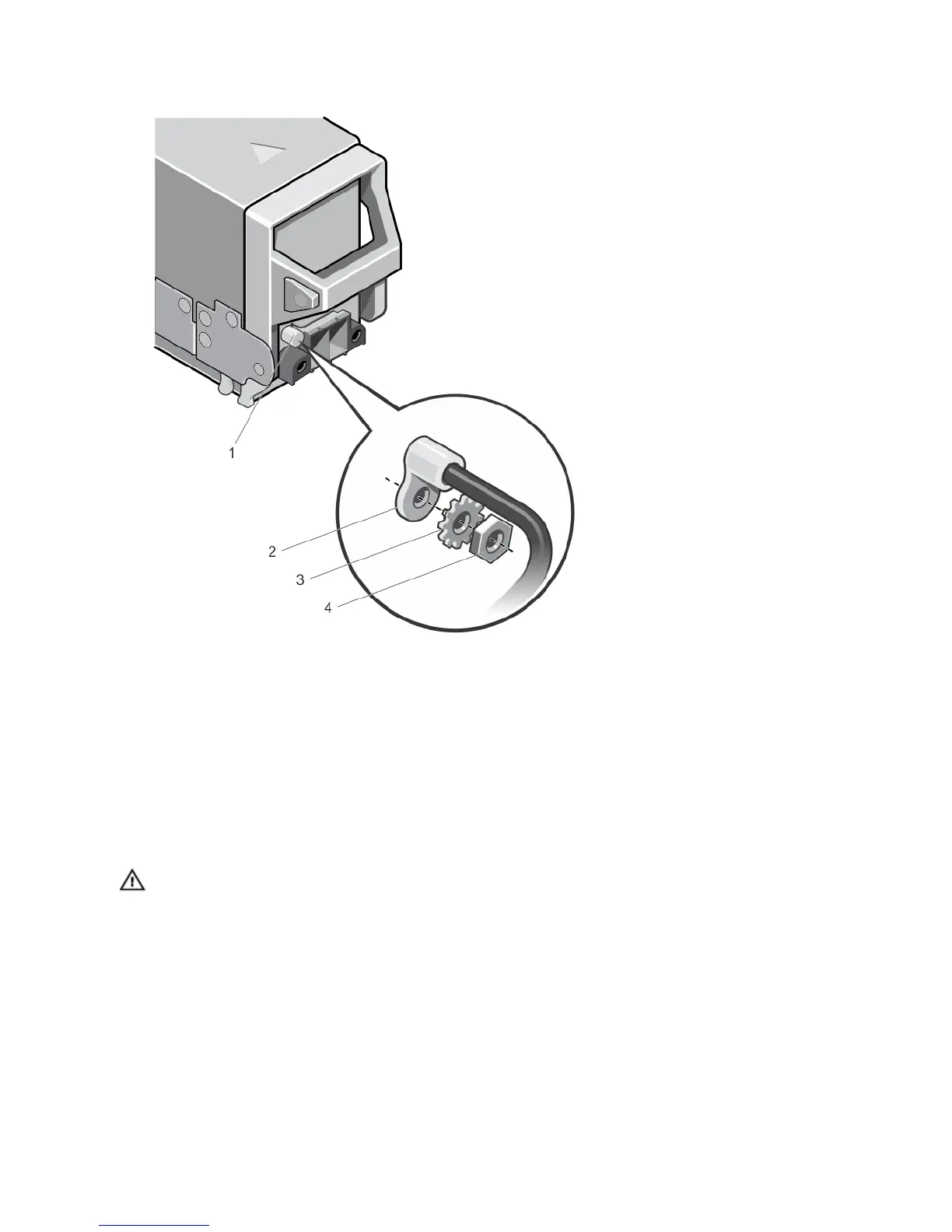

Figure 40. Assembling and Connecting the Safety Ground Wire
1. grounding post
2. safety ground wire terminal
3. locking washer
4. #5/16 nut
Assembling The DC Input Power Wires And DC Power Connector
WARNING: For equipment using –(48–60) V DC power supplies, a qualified electrician must perform all connections
to DC power and to safety grounds. Do not attempt connecting to DC power or installing grounds yourself. All
electrical wiring must comply with applicable local or national codes and practices. Damage due to servicing that
is not authorized by Dell is not covered by your warranty. Read and follow all safety instructions that came with the
product.
1. Strip the insulation from the ends of the DC power wires, exposing approximately 13 mm (0.5 inch) of copper wire.
76

Dell External M1000e t Specifications

General

Rack Units	10U
Model	M1000e
Power Supply	Up to 6 power supply units (PSUs)
Form Factor	Enclosure
Cooling	Redundant, hot-swappable fans
Management	Dell Chassis Management Controller (CMC)
Compatibility	Dell PowerEdge blade servers
Networking	Fibre Channel, InfiniBand
