Installing DC Power Supplies | 37
7 Route the terminated cables down and toward the rack rail, as shown below.

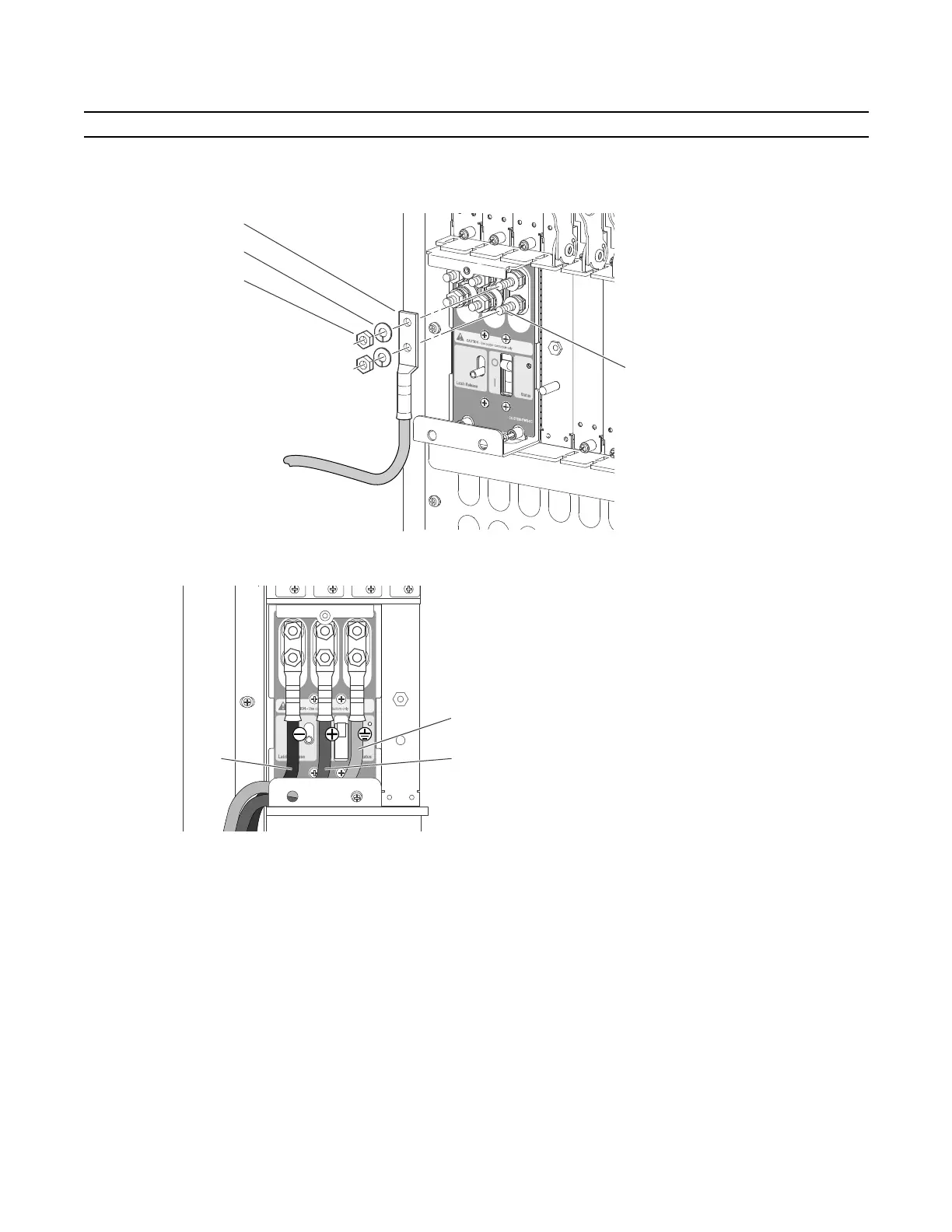

Figure 8-5. Connecting the Ground Cable to the E1200 PEM
Figure 8-6. DC PEM with Connections in Place
Step Task (continued)
Split-lock washer
Ground studs
Lug nuts
Lug
fn00106lp
fn00106lp
-48 (-) cable
typically black
Return cable (+)
typically red
Ground cable
typically green
