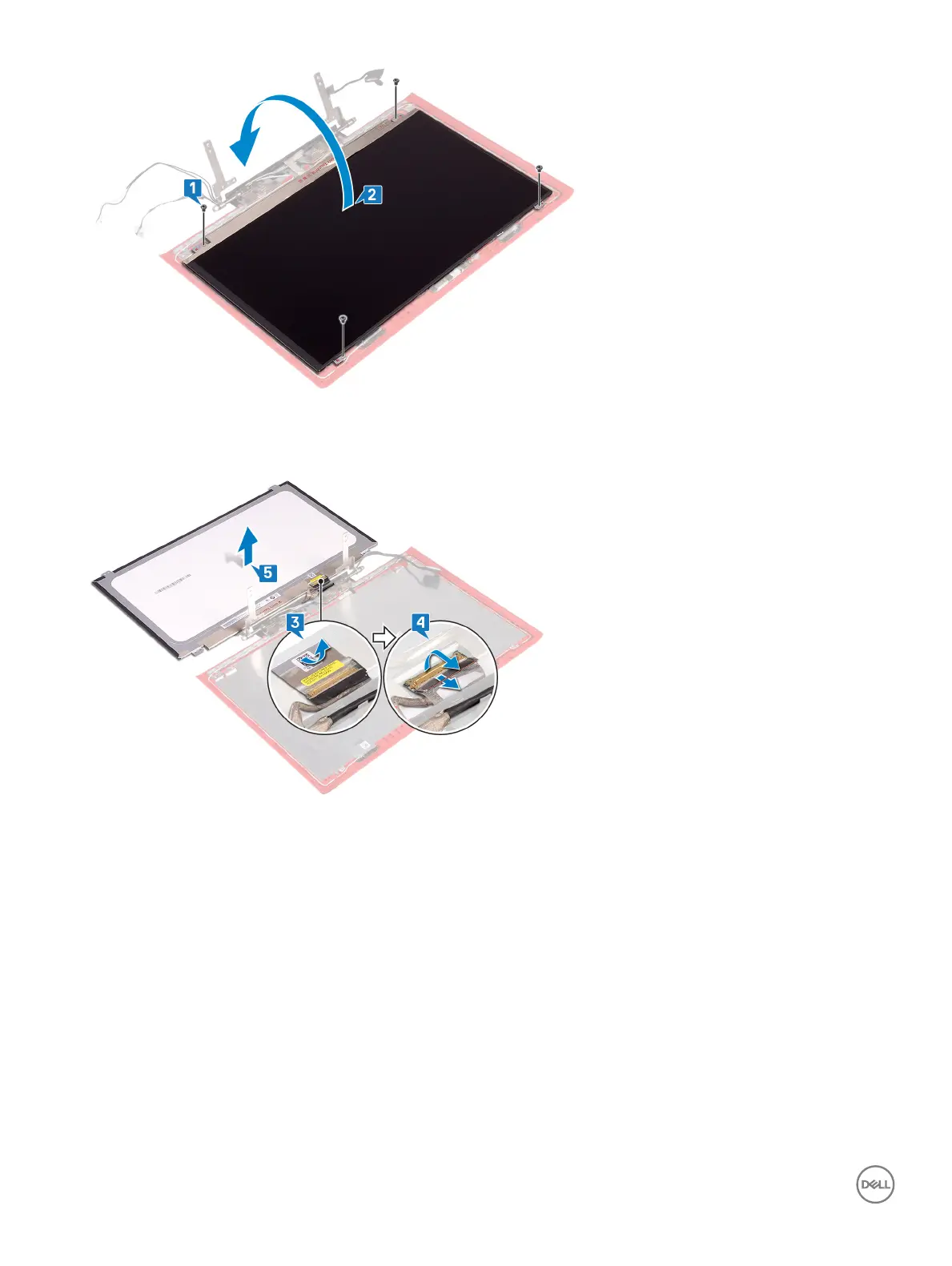

3 Peel o the tape that secures the display cable to the display panel.

4 Open the latch and disconnect the display cable from the display panel.

5 Lift the display panel away from the display back-cover.

110 Removing the display panel
