Dell G5 5587 - Page 33

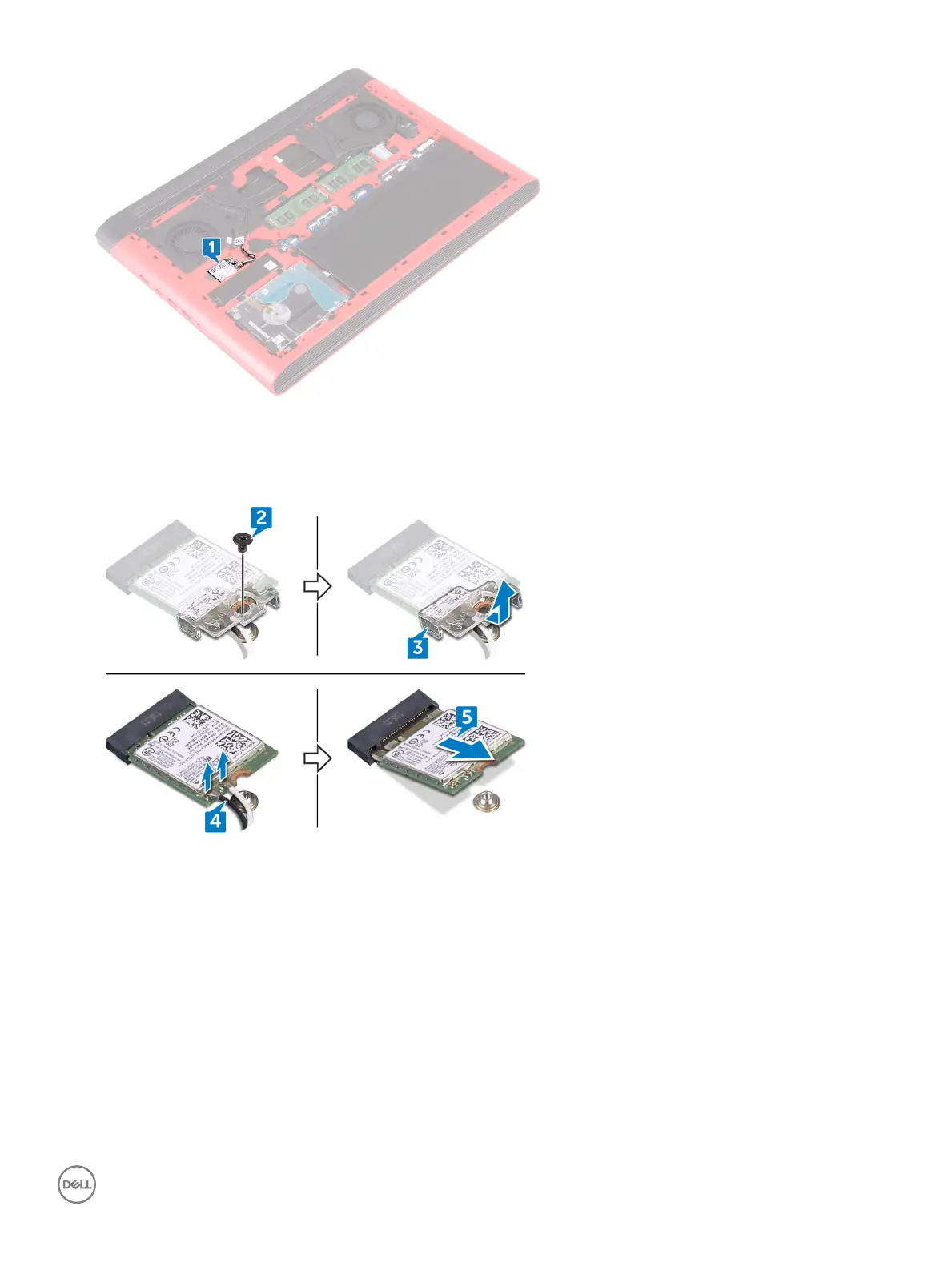

2 Remove the screw (M2x3) that secures the wireless-card bracket to the wireless card and system board.
3 Remove the wireless-card bracket from the wireless card.
4 Disconnect the antenna cables from the wireless card.
5 Slide and remove the wireless card from the wireless-card slot.
Removing the wireless card
33
