Dell Latitude 3490 - Installing VGA Board; Memory Module; Removing the Memory Module

Installing VGA board

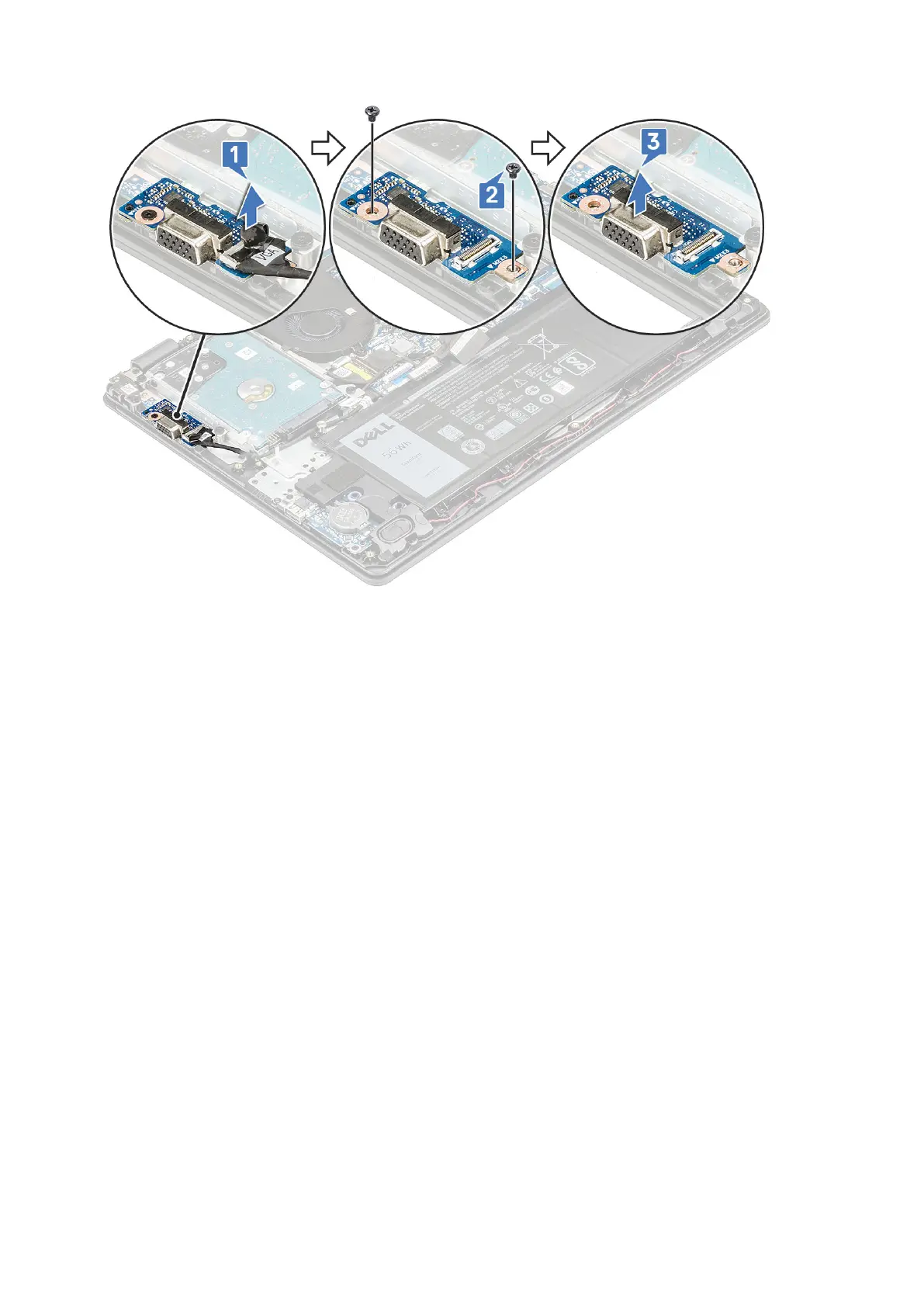

1. Place the VGA board in its slot on the system.
2. Replace the two M2x3 screws to secure the VGA board to the system.
3. Connect the VGA daughter board cable to the VGA daughter board.
4. Install the:
a. battery
b. base cover
5. Follow the procedure in After working inside your computer.
Memory Module
Removing the memory module
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Removing the SIM tray – WWAN models on page 12
b. base cover
c. battery
3. To remove the memory module:
a. Pry apart the memory module latches until the memory module pops out [1].
b. Lift and remove the memory module from the system board [2].
