5. Affix the adhesive tape to secure the touchpad bracket
6. Install the:
a. battery
b. base cover
7. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. hard drive
d. Removing the WLAN card on page 18

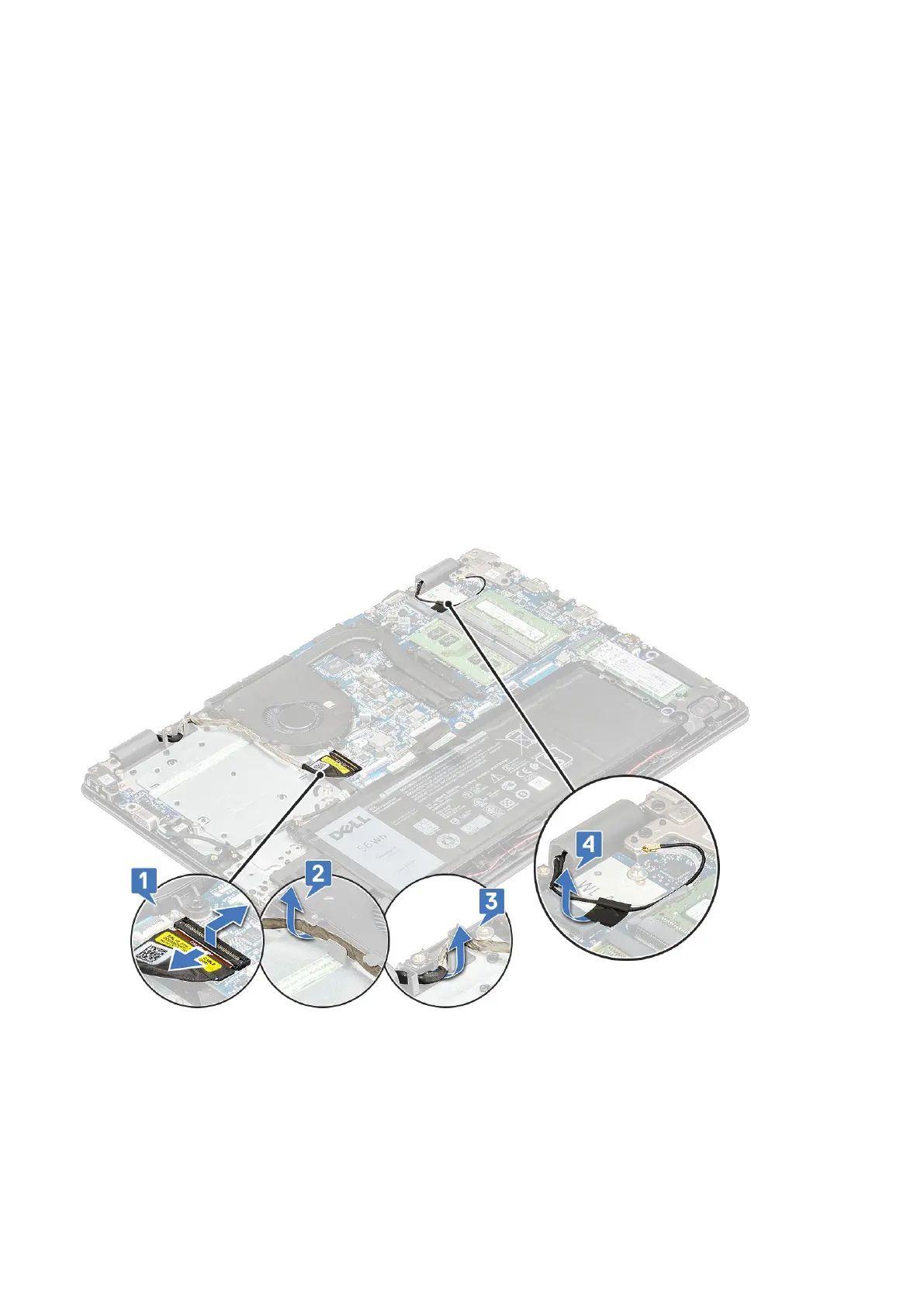

3. Remove the eDP cable from its connector on the system board [1] and unroute the cable from the routing channel on the
system fan [2].
4. Unroute the eDP cable from the routing channel on the system [3].
5. Peel the tape securing the WLAN cables [4] and unroute the cables from the routing channel.
6. Then, open the palmrest assembly and flip over the computer on a flat surfaced table.
Disassembly and reassembly
39
