Dell Latitude 3490 - Installing the LCD Bezel; Camera; Removing the Camera

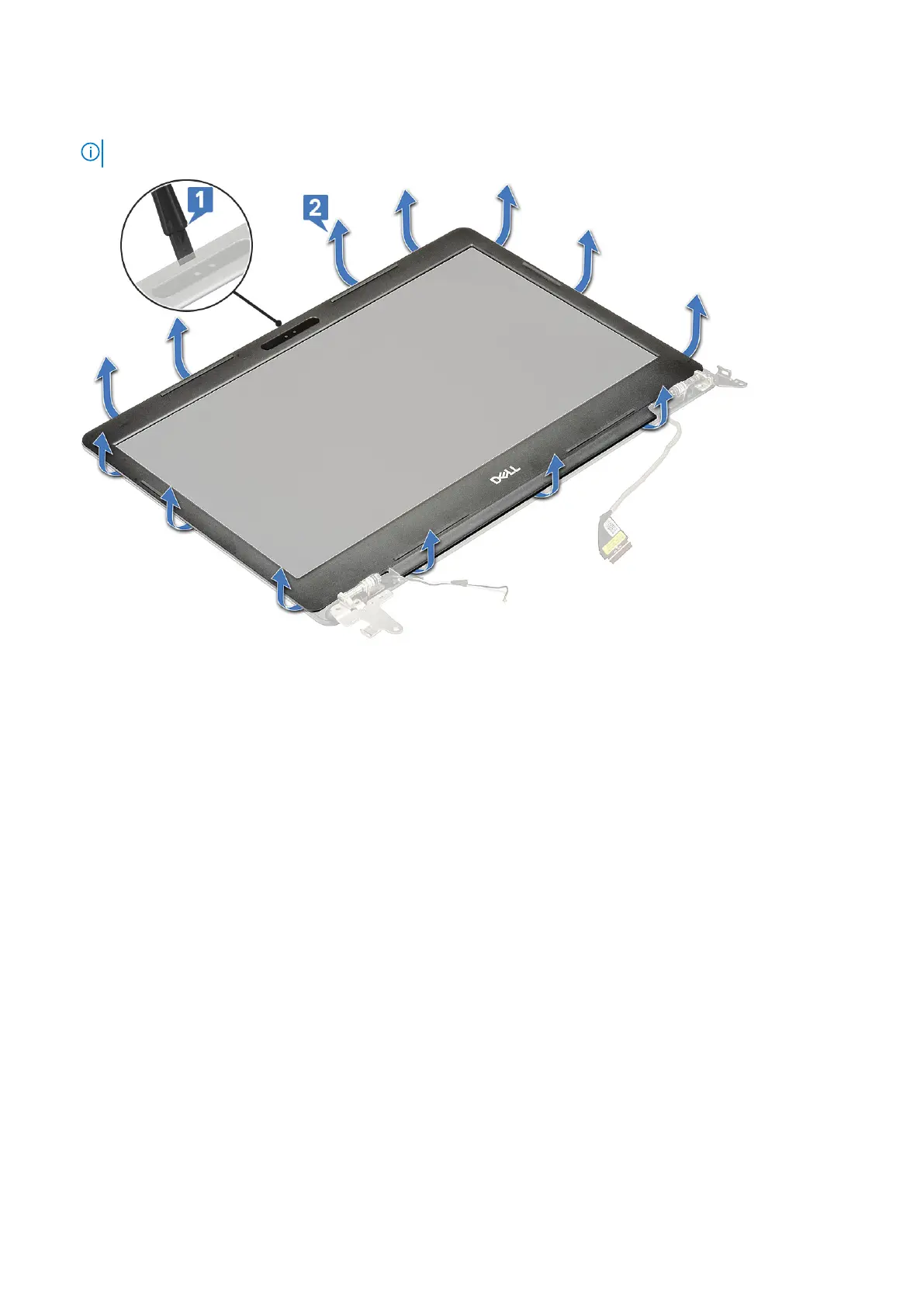

3. Using a plastic scribe, gently open the bezel by prying from the outer edge of the top side of the display bezel [1] , and then
continue throughout the system [2]. Lift the bezel away from the system.
NOTE: Use a plastic scribe and handle the bezel with your hands to avoid leaving glue residue on the display panel
Installing the LCD bezel
1. Replace the bezel and gently press on the edges to snap the bezel into place.
2. Install the:
a. display hinge cover
b. display assembly
c. Installing the WWAN daughterboard on page 20
d. Installing the WLAN card on page 19
e. hard drive
f. battery
g. base cover
3. Follow the procedure in After working inside your computer
Camera
Removing the camera
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. Removing the WLAN card on page 18
d. Removing the WWAN daughterboard on page 19
50
Disassembly and reassembly
