e. display assembly
f. display hinge cover
g. LCD bezel

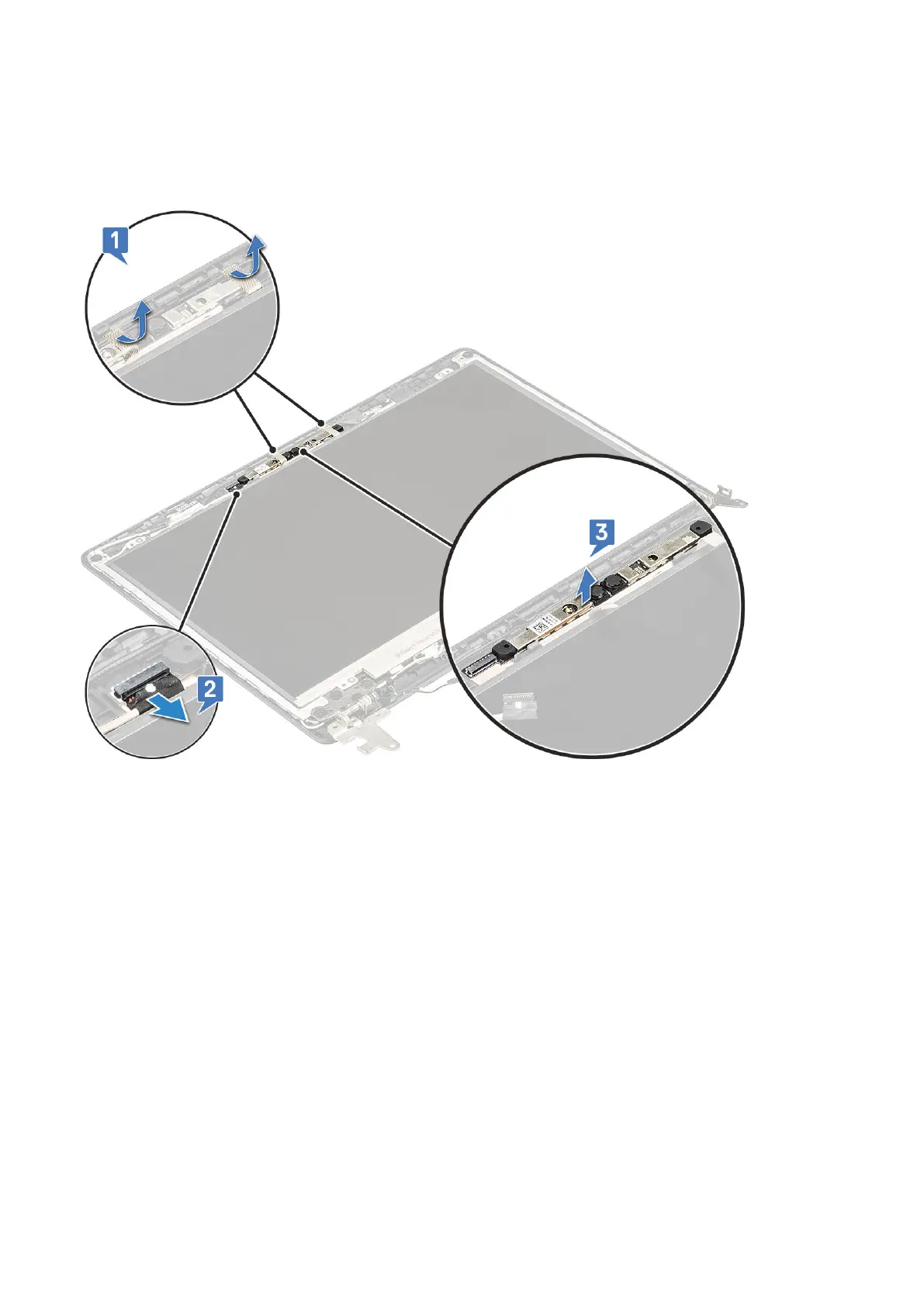

3. Remove the adhesive tapes securing the camera to the LCD back cover [1].
4. Disconnect the camera cable [2] and lift the camera to release it from the adhesive securing it to the LCD back cover [3].
Installing the camera
1. Place the camera on the LCD back cover.
2. Connect the camera cable to its connector.
3. Affix the adhesive tapes to secure the camera to the LCD back cover.
4. Install the:
a. LCD bezel
b. display hinge cover
c. display assembly
d. Installing the WWAN daughterboard on page 20
e. WLAN
f. battery
g. base cover
5. Follow the procedure in After working inside your computer
Disassembly and reassembly
51
