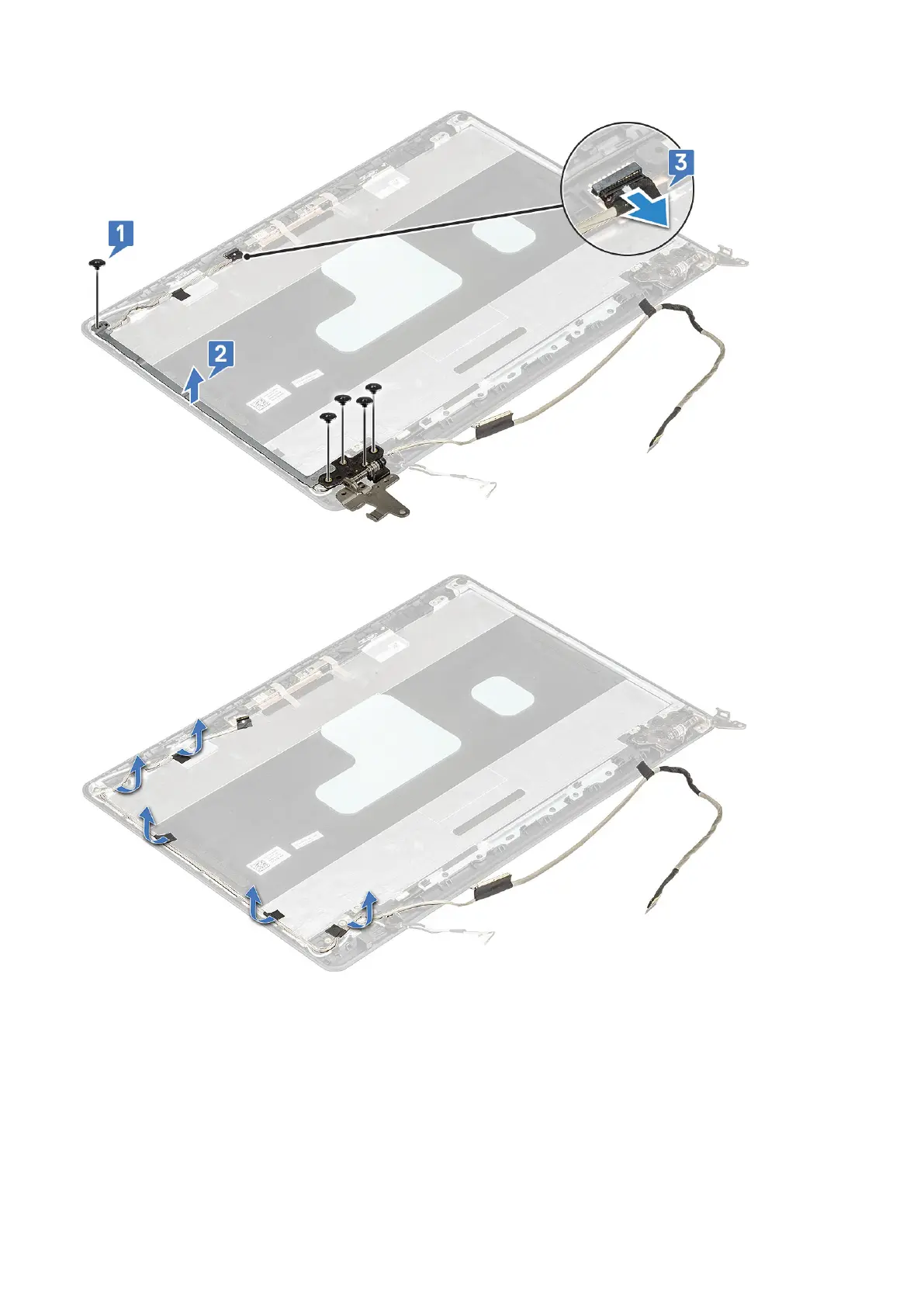

5. Peel the adhesive tapes securing the display cable to the LCD back cover and unroute it from the routing channel.
Installing the eDP and camera cable
1. Route the display cable through its routing channel and secure the display cable to the LCD back cover with the adhesive
tapes.
2. Connect the camera cable to its connector on the LCD back cover.
3. Replace the 5 M2.5x2.5 screws to secure the left hinge bracket to the LCD back cover.
4. Secure the eDP cable to the LCD back cover with adhesive tapes.
5. Install the:
Disassembly and reassembly
