LCD Panel
Removing the LCD panel
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. hard drive
c. battery
d. Removing the WLAN card on page 18
e. Removing the WWAN daughterboard on page 19
f. display assembly
g. display hinge cover
h. LCD bezel

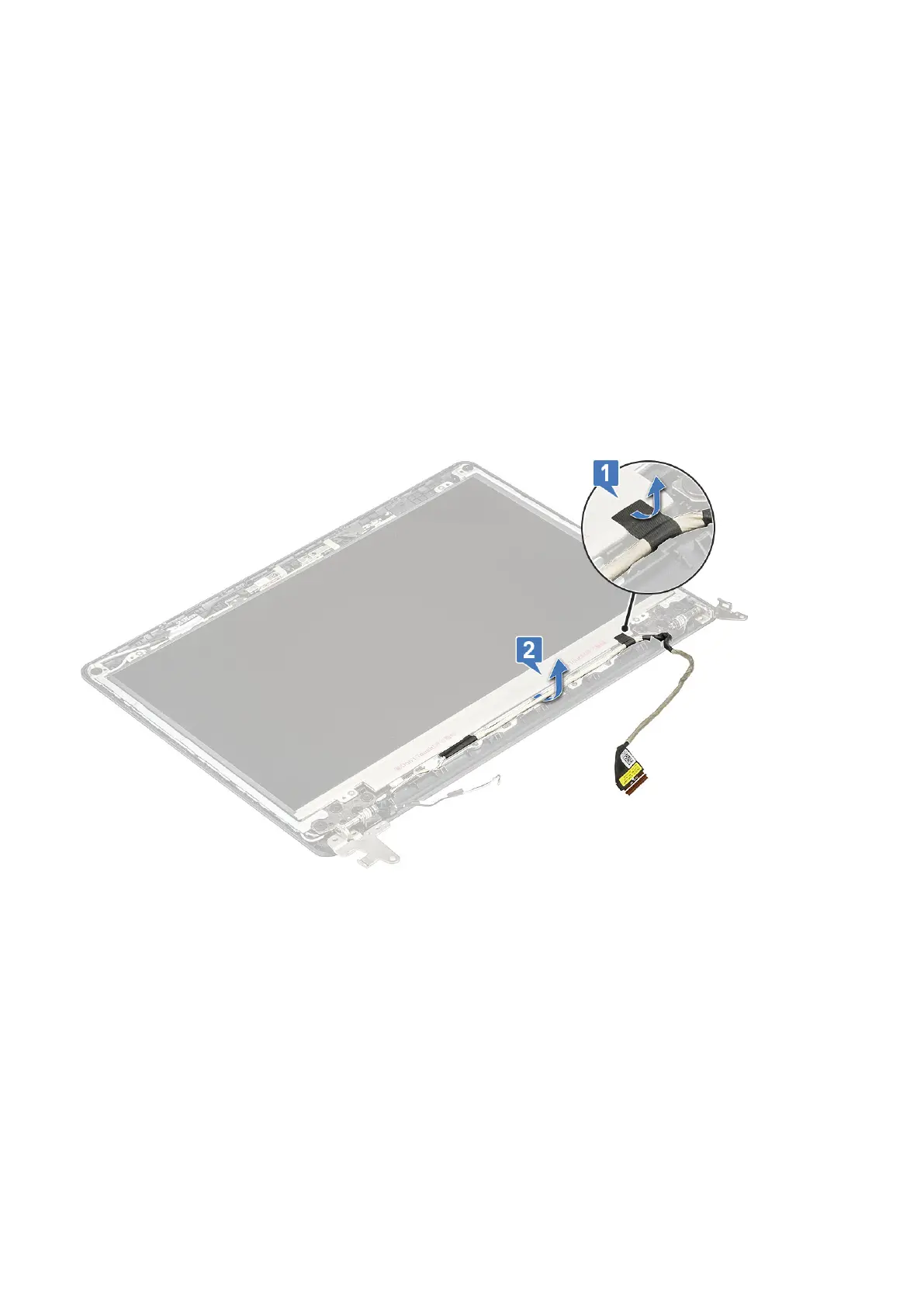

3. Remove the adhesive tape that secures the eDP cable to the display panel [1].
4. Unroute the eDP cable from the routing channel [2].
5. Then, remove the 4 M2x2 screws [1] securing the LCD panel to the LCD back cover and flip it over to expose the eDP cable
connector [2].
52
Disassembly and reassembly
