Dell Latitude 3490 - M2. SATA Solid State Drive (SSD); Removing the M2. SSD Card; Installing the M2. SSD Card

NOTE: Display cable should be routed above the WWAN antennas (for models shipped with a WWAN card), and then
secured with conductive tape on the palm rest.
5. Install the:
a. battery
b. base cover
6. Follow the procedure in After working inside your computer.
M2. SATA Solid State Drive (SSD)
Removing the M2. SSD card
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b.

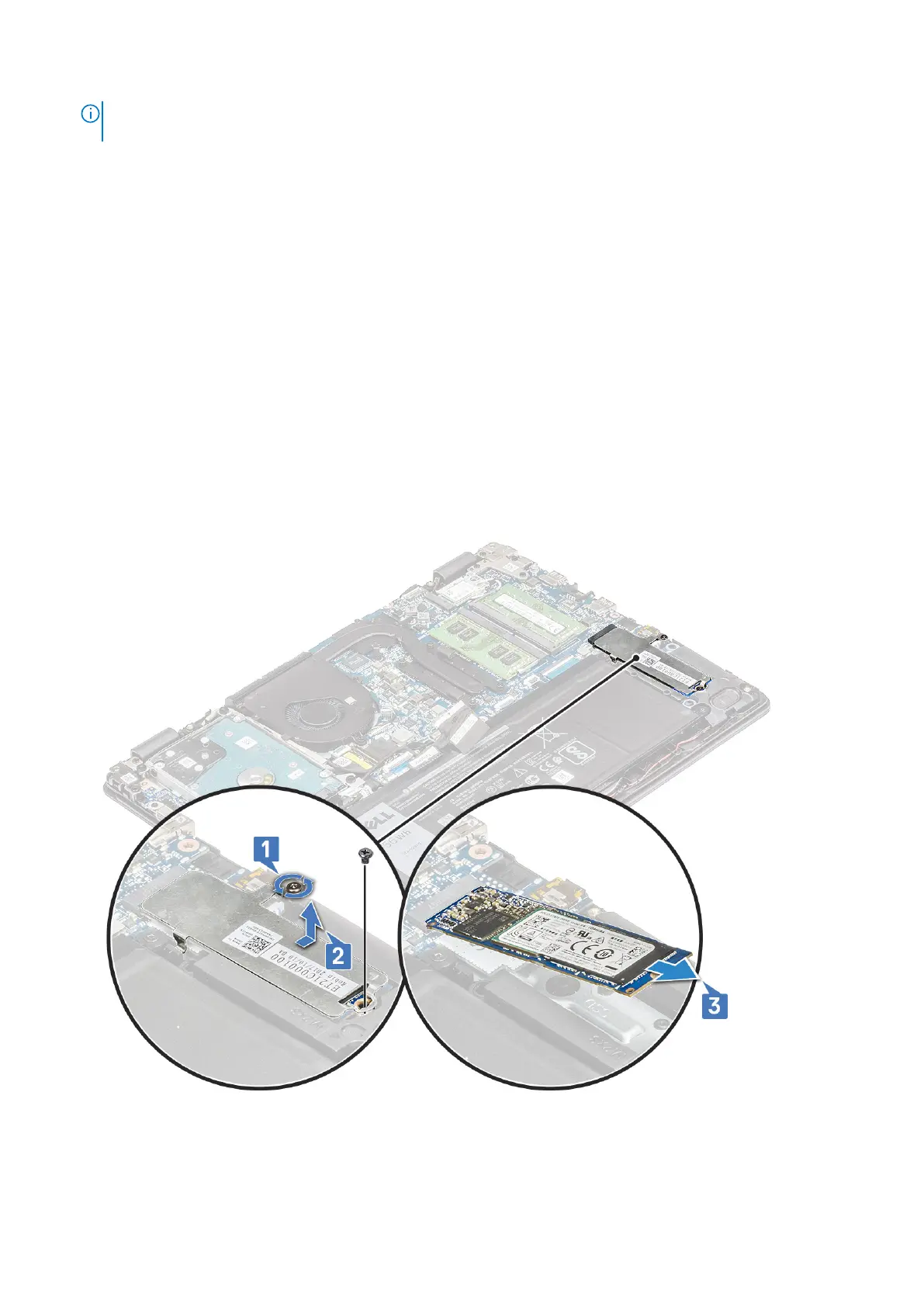

3. To remove the Solid State Drive (SSD) card:
a. Remove the two (M2x3) screws that secures the SSD bracket to the system [1], and lift the bracket from the system
[2]..
b. Slide and lift the SSD from the system [3].
Installing the M2. SSD card
1. Insert the SSD card into its slot on the system.
Disassembly and reassembly
27
