Removing and Installing Components
This section provides detailed information on how to remove or install the components from your computer.
System Overview

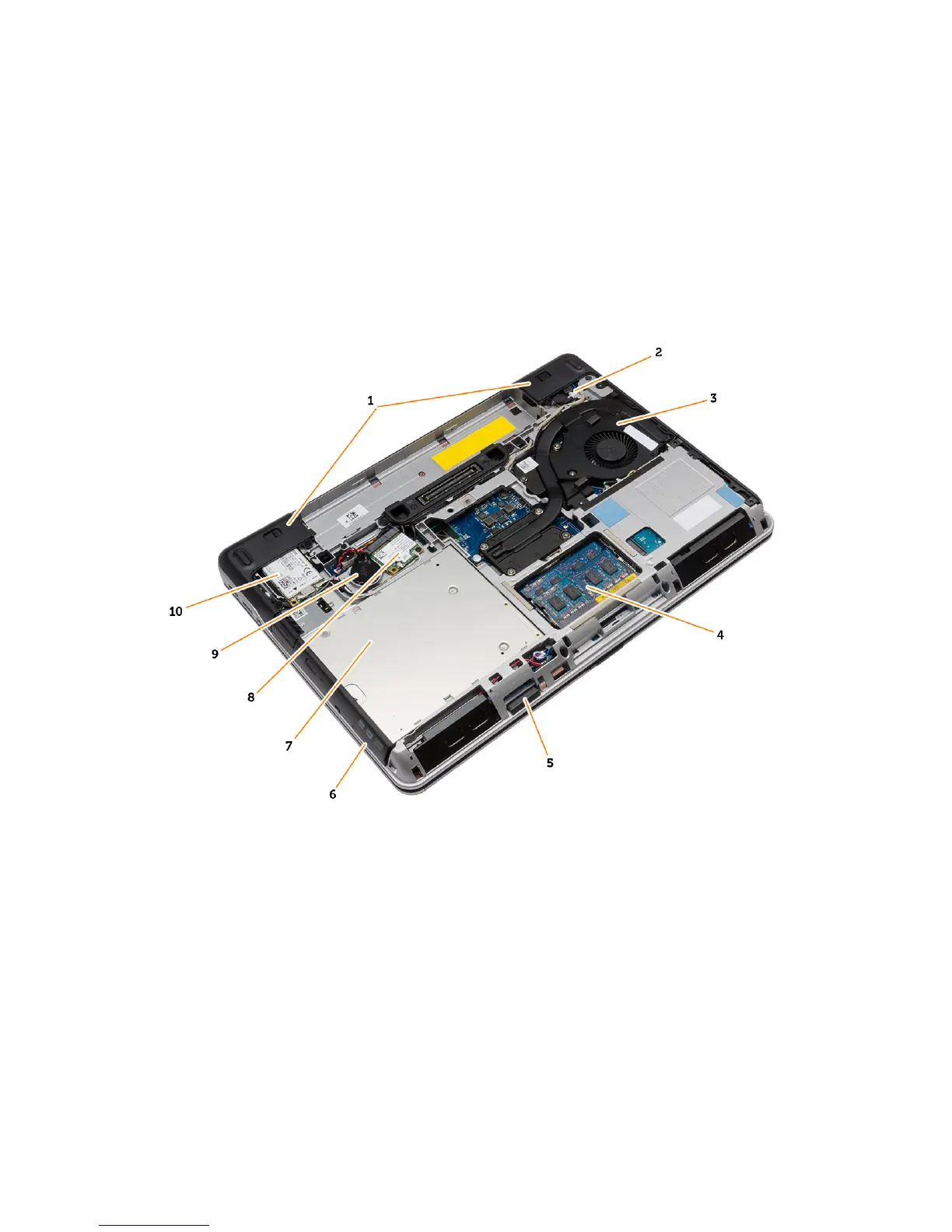

Figure 1. Back View — Back Cover Removed
1. base corner caps 2. power connector
3. heatsink assembly 4. memory module
5. SD card 6. ExpressCard slot
7. optical drive 8. WLAN card
9. coin-cell battery 10. WWAN card
