Dell Latitude E6440 - Removing the Palmrest Assembly

Removing the Palmrest Assembly
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a. SD card
b. ExpressCard
c. battery
d. keyboard trim
e. keyboard
f. hard drive
g. optical drive
h. display-hinge cover
i. base cover
j. base corner caps

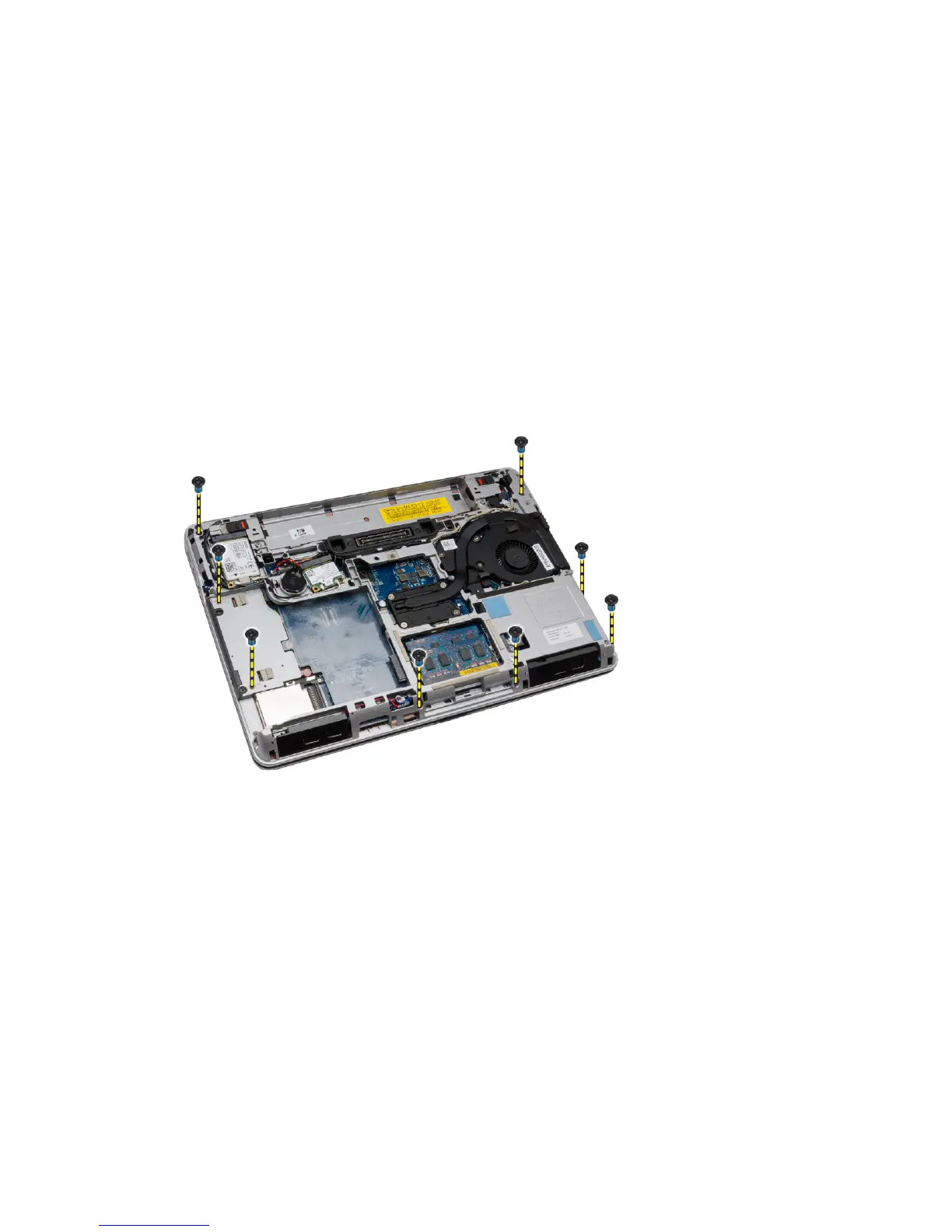

3. Remove the screws that secure the palmrest assembly to the base of the computer.
