Dell Latitude E6440 - Installing the System Board

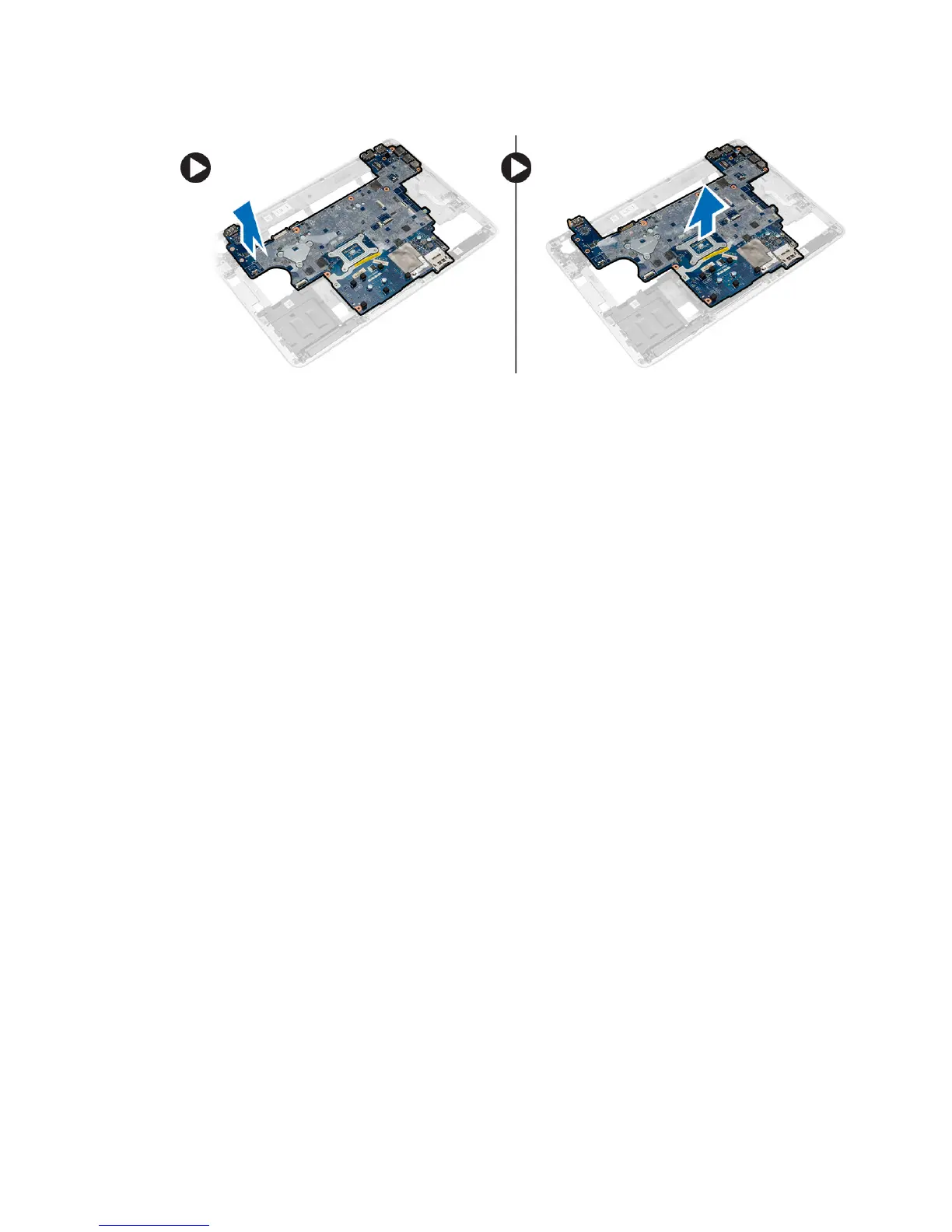

5. Lift the system board from the computer.
Installing the System Board
1. Place the system board to align with the ports on the computer.
2. Connect the WiFi-Switch board cable to the system board and tighten the screws to secure the system board.
3. Connect the following cables to the system board:
a. speaker
b. coin-cell battery
4. Install:
a. ExpressCard cage
b. palmrest assembly
c. processor
d. heatsink assembly
e. WWAN
f. WLAN card
g. memory
h. coin-cell battery
i. power connector
j. base corner caps
k. base cover
l. display-hinge cover
m. optical drive
n. hard drive
o. keyboard trim
p. keyboard
q. battery
r. ExpressCard
s. SD card
5. Follow the procedures in After Working Inside Your Computer .
