Dell Latitude E6440 - Removing the Display Hinges; Installing the Display Hinges

Removing the Display Hinges
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a. battery
b. display-hinge cap
c. base cover
d. base corner caps
e. display assembly
f. display bezel
g. display panel

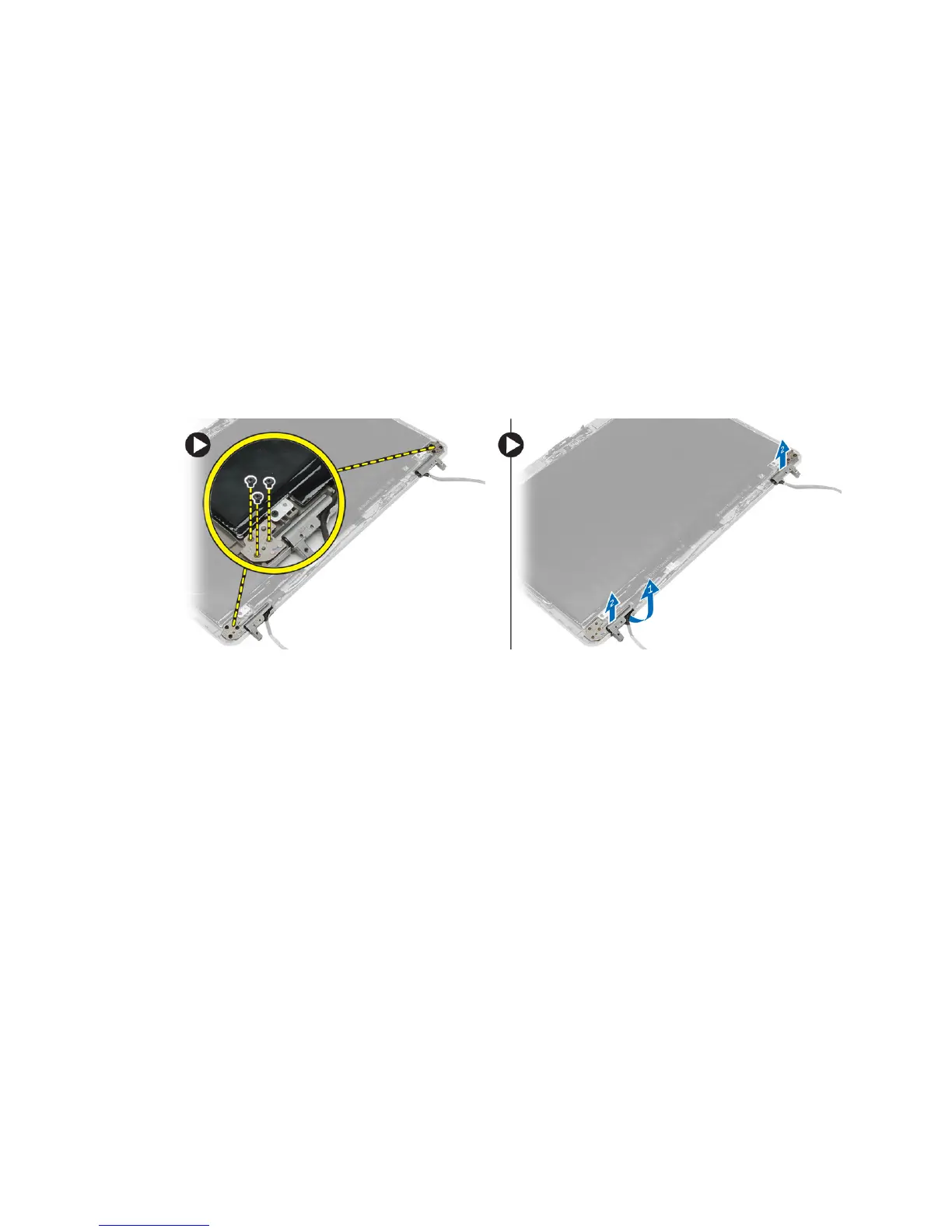

3. Perform the following steps as shown in the illustration:
a. Remove the screws that secure the display hinges to the display assembly.
b. Remove the display hinges from the computer.
Installing the Display Hinges
1. Place the display hinges in its location on the computer.
2. Tighten the screws to secure the display hinges to the display assembly.
3. Install:
a. display panel
b. display bezel
c. display assembly
d. base corner caps
e. base cover
f. display-hinge cap
g. battery
4. Follow the procedures in After Working Inside Your Computer .
