Dell Latitude E6440 - Removing the Network Connector; Installing the Network Connector

3. Install:
a. base cover
b. battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the Network Connector
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a. battery
b. base cover
c. base corner cap (left)

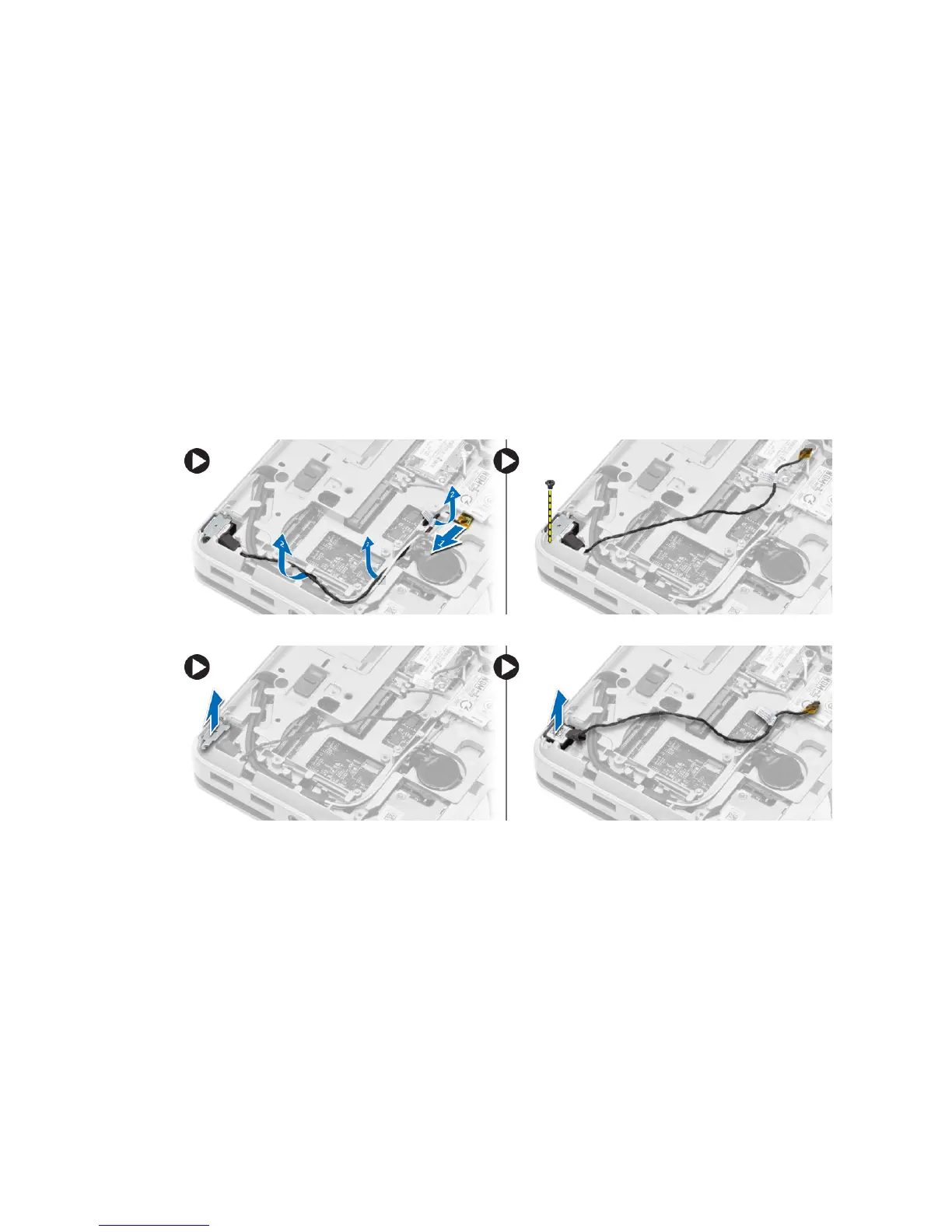

3. Perform the following steps as shown in the illustration:
a. Disconnect the cable from the system board [1].
b. Release cable from the routing channel [2].
c. Remove the screw that secures the network-connector bracket to the computer.
4. Remove the network-connector bracket from the computer. Lift the network connector from the computer.
Installing the Network Connector
1. Align the network connector to its position on the computer.
2. Place the network-connector bracket on the network connector.
3. Tighten the screw to secure the network-connector bracket to the computer.
4. Route the cable through the routing channel.
5. Connect the cable to the system board.
