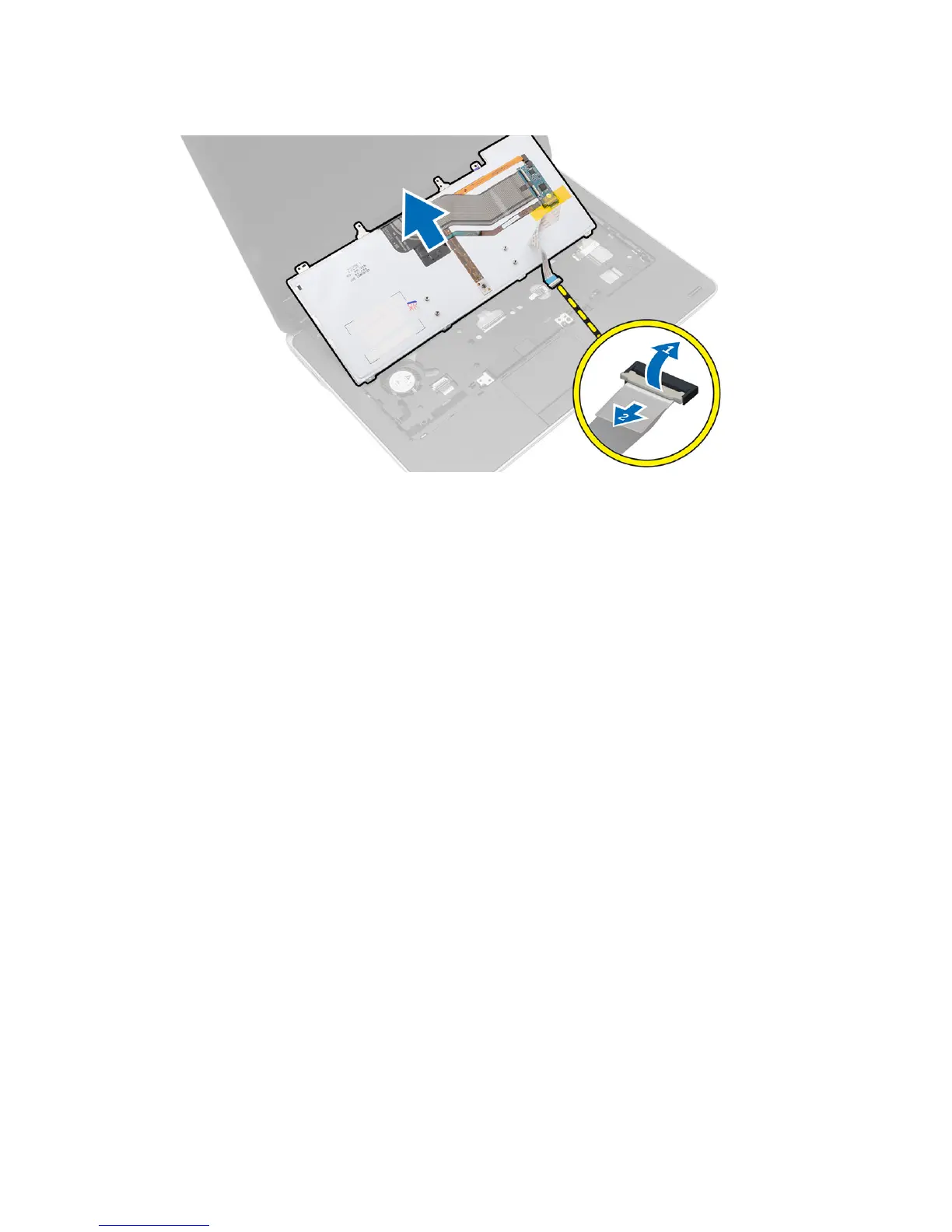

5. Disconnect the keyboard cable from the system board.
Installing the Keyboard
1. Connect the keyboard cable to the system board.
2. Slide the keyboard into its compartment until it clicks into place.
3. Tighten the screws to secure the keyboard to the palmrest assembly.
4. Flip the computer and tighten the screws on the back of the computer.
5. Install the keyboard trim.
6. Install the battery.
7. Follow the procedures in
After Working Inside Your Computer
.
Removing the WLAN Card
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a. battery
b. base cover
