Dell Latitude E6440 - Removing the Display Assembly

Removing the Display Assembly
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a. battery
b. keyboard trim
c. keyboard
d. hard drive
e. optical drive
f. display-hinge cover
g. base cover
h. base corner caps
i. power connector
j. palmrest assembly

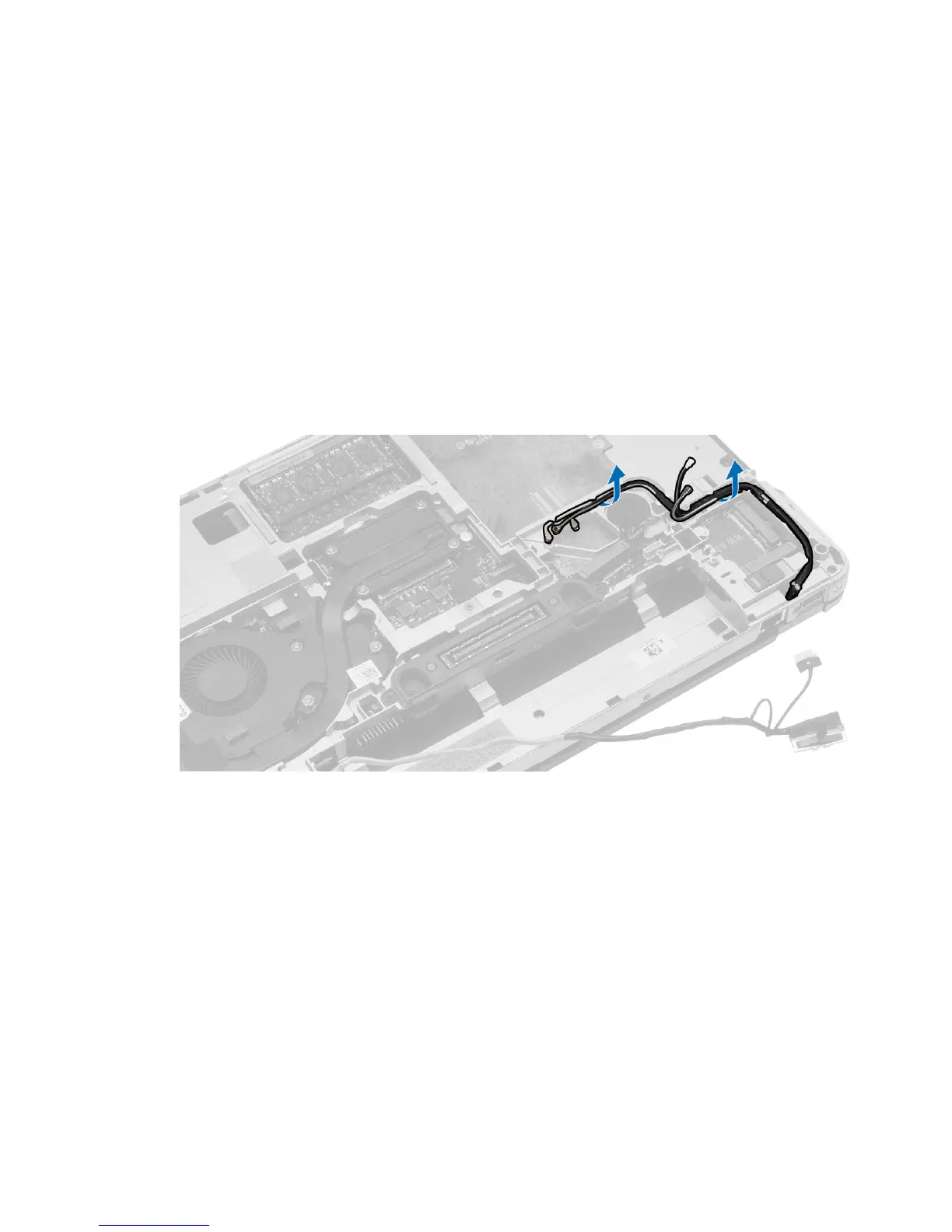

3. Remove the antenna cables connected to wireless solutions from the routing channels.
