Dell Latitude E6440 - Installing the Display Panel

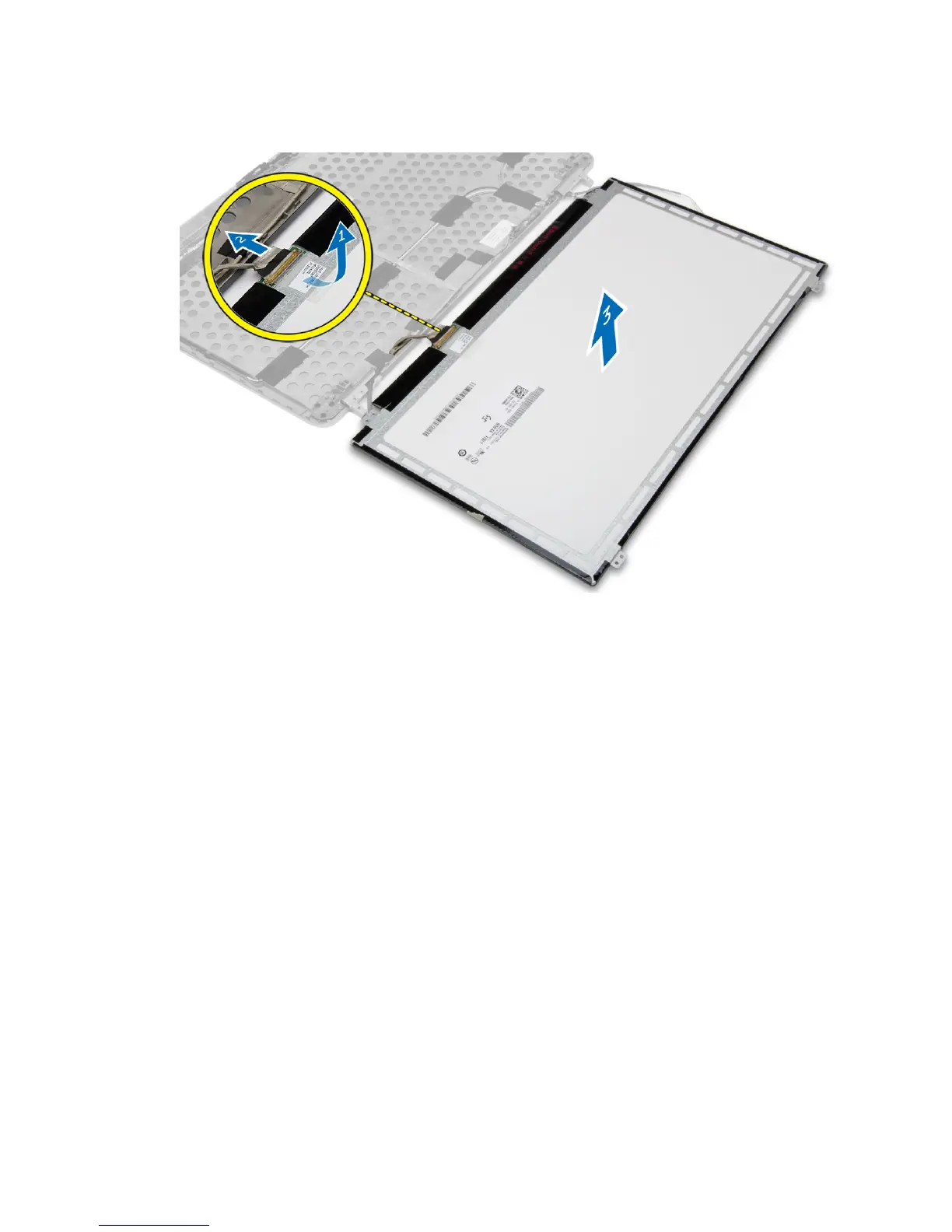

5. Peel off the LVDS cable-connector tape and disconnect the LVDS cable from the display panel. Remove the display
panel from the display assembly.
Installing the Display Panel
1. Connect the LVDS cable and stick the LVDS cable-connector tape.
2. Flip the display and place it in the display assembly.
3. Tighten the screws to secure the display panel to the display assembly.
4. Install:
a. display bezel
b. display assembly
c. base corner caps
d. base cover
e. display-hinge cap
f. battery
5. Follow the procedures in After Working Inside Your Computer .
46
