Power Supply 113

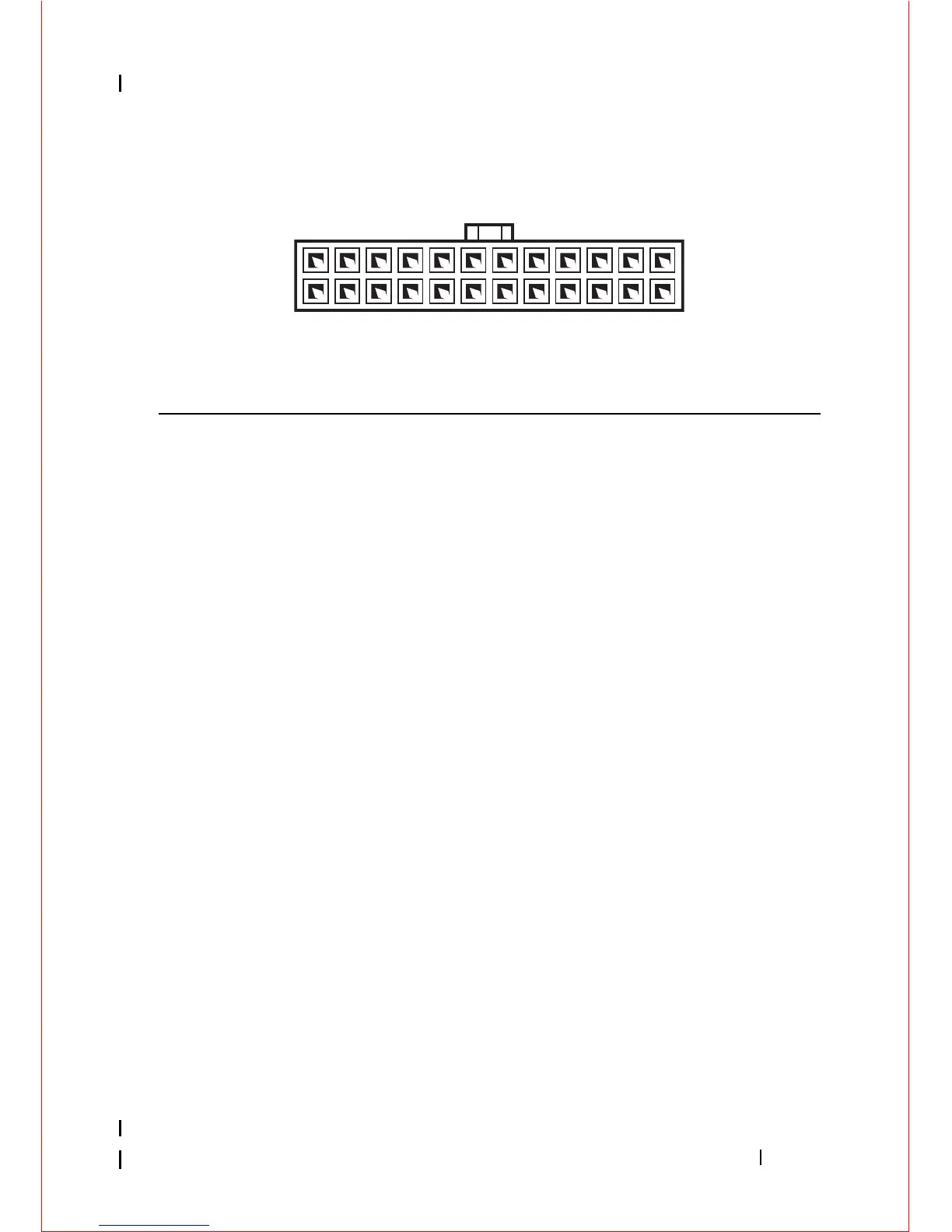

P1: MB Connector — Desktop Computer
Pin Number Signal Name Wire Color Wire Gauge
1 +3.3 VDC Orange AWG#20
2 +3.3 VDC Orange AWG#20
3 COM Black AWG#20
4 +5 VDC Red AWG#20
5 COM Black AWG#20
6 +5 VDC Red AWG#20
7 COM Black AWG#20
8 POK Gray AWG#22
9 +5 VFP Purple AWG#20
10 +12 VDC White AWG#20
11 +12 VDC White AWG#20
12 +3.3 VDC Orange AWG#20
13 +3.3 VDC/SE Orange AWG#20
14 -12 VDC Blue AWG#20
15 COM Black AWG#20
16 PS_ON Green AWG#22
17 COM Black AWG#20
18 COM Black AWG#20
19 COM Black AWG#20
20 NC NC AWG#20
21 +5 VDC Red AWG#20
123456789101112
123456789101112
