114 Power Supply

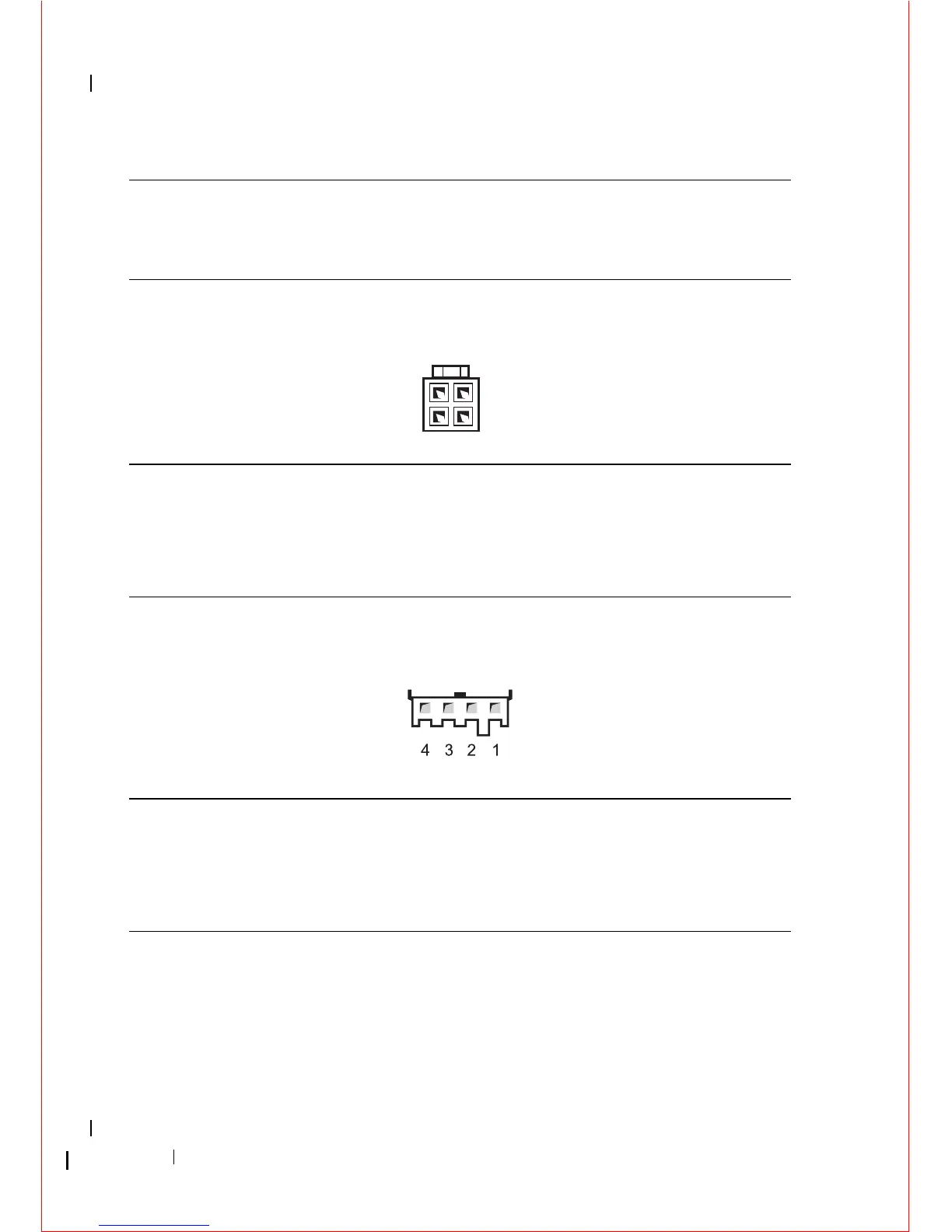

P2: CPU Connector — Desktop Computer
P4: Floppy Disk Drive Connector — Desktop Computer
22 +5 VDC Red AWG#20
23 +5 VDC Red AWG#20
24 COM Black AWG#20
Pin Number Signal Name Wire Color Wire Gauge
1 COM Black AWG#18
2 COM Black AWG#18
3 +12 VDC Yellow AWG#18
4 +12 VDC Yellow AWG#18
Pin Number Signal Name Wire Color Wire Gauge
1 +5 VDC Red AWG#22
2 COM Black AWG#22
3 COM Black AWG#22
4 +12 VDC Yellow AWG#22
Pin Number Signal Name Wire Color Wire Gauge
3
1
4
2
